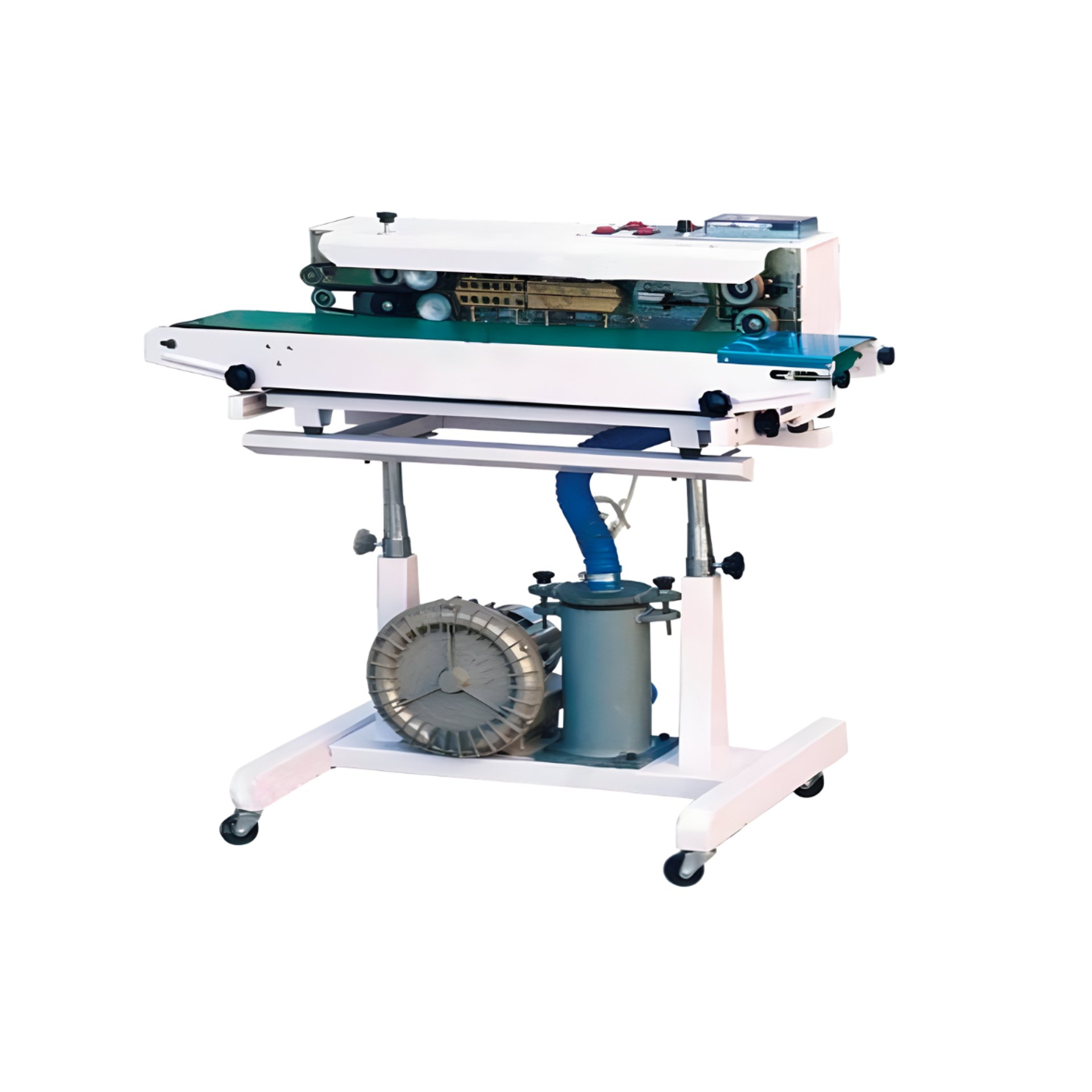

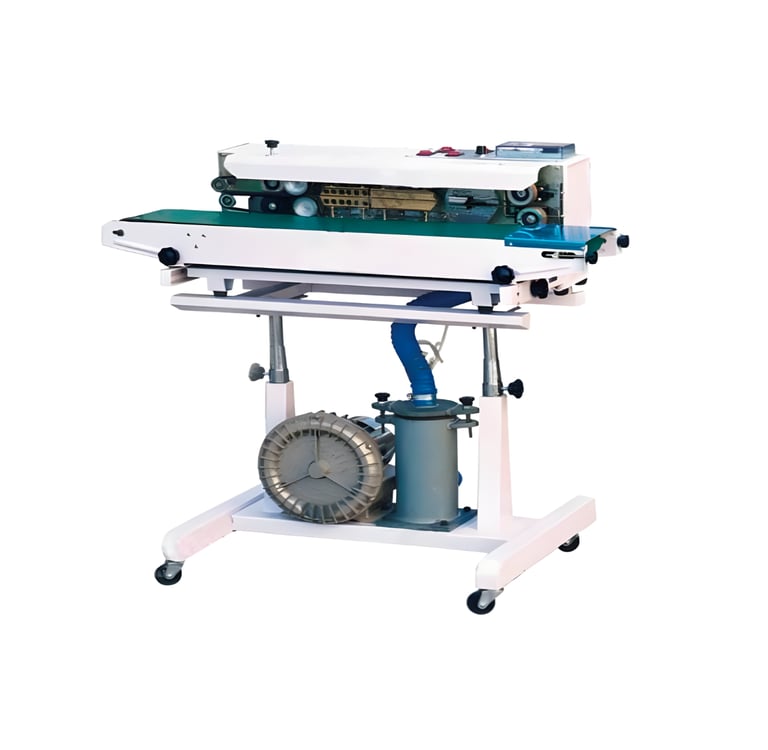

Air Flushing Continuous Band Sealer (BPACS 900AF)

The Continuous Band Sealer with Air Flushing (BPACS 900AF) is an advanced sealing solution designed for enhanced packaging protection. This machine integrates air flushing with continuous band sealing, helping to reduce moisture, dust, and contamination inside pouches before sealing.

It is ideal for applications where product integrity and improved shelf life are important, especially in food, chemical, and industrial packaging.

Key Features

• Integrated air flushing system for improved product protection

• Continuous band sealing for high-speed operation

• Adjustable temperature and sealing speed controls

• Conveyor system for smooth pouch movement

• Strong and uniform sealing quality

• Suitable for laminated and plastic pouches

• Robust design for industrial use

Applications

• Food Products (Snacks, Spices, Grains)

• Chemical & Industrial Products

• Powder & Granule Packaging

• Retail & Bulk Packaging

Technical Specifications

Model - BPACS 900AF (Air Flushing)

• Voltage - 220V / 50 Hz

• Power - 835 W

• Heat Sealing Power - 40 W × 2

• Sealing Speed - 0 to 12 m/min (adjustable up to ~16 m/min)

• Sealing Width - 8 mm to 10 mm

• Temperature Range - 0°C to 300°C

• Distance (Seal Center to Conveyor) - 10 mm to 40 mm

• Conveyor Size - 930 mm × 153 mm

• Film Thickness - Up to 0.08 mm

• Single Conveyor Load - 1 kg

• Overall Conveyor Load - 3 kg

• Machine Dimensions - 1050 mm × 560 mm × 900 mm (L × W × H)

• Net Weight - Approx. 62 kg
