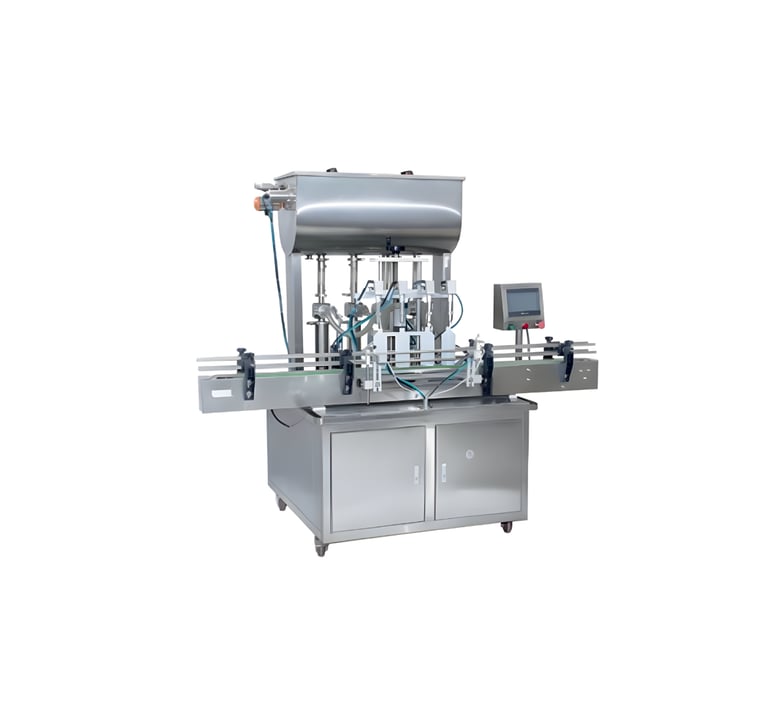

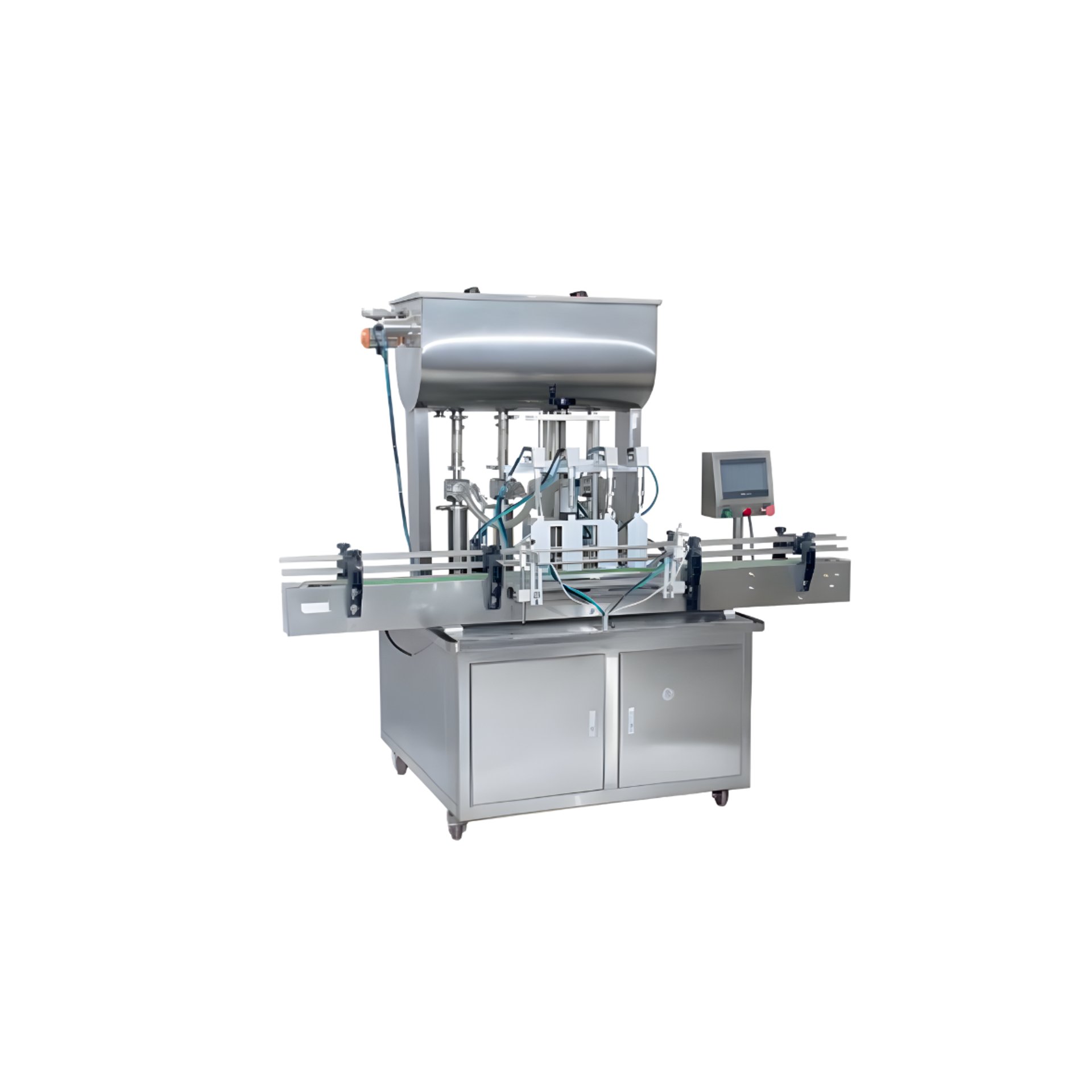

Automatic 4 head Liquid Filling Machine

The Automatic 4 Head Liquid Filling Machine is a high-performance solution engineered to significantly boost production efficiency while maintaining precise filling accuracy. Equipped with four synchronized nozzles, it ensures rapid and consistent filling across multiple containers simultaneously.

Designed for versatility, this machine is ideal for handling a wide range of free-flowing liquids in food, pharmaceutical, and chemical industries.

Key Features

• Multi-head filling system for higher productivity

• Four synchronized nozzles for uniform filling

• High accuracy with minimal product wastage

• Suitable for a wide range of liquid products

• Anti-drip and anti-foam nozzle design

• Fully automatic and easy-to-operate system

• Durable stainless steel construction

Applications

• Beverage and juice bottling

• Pharmaceutical liquid filling

• Edible oil packaging

• Chemical and detergent filling

• FMCG liquid packaging lines

Technical Specifications

• Filling Range (ml) - 100 – 1000 (customizable for higher volumes)

• Production Speed (bottles/min) - 20 – 40 (depending on liquid viscosity)

• Nozzle Configuration - 4 high-precision diving nozzles

• Accuracy - ±0.5% – 1%

• Power Requirements - AC 220 V / 50 Hz, 2.5 – 3 kW
