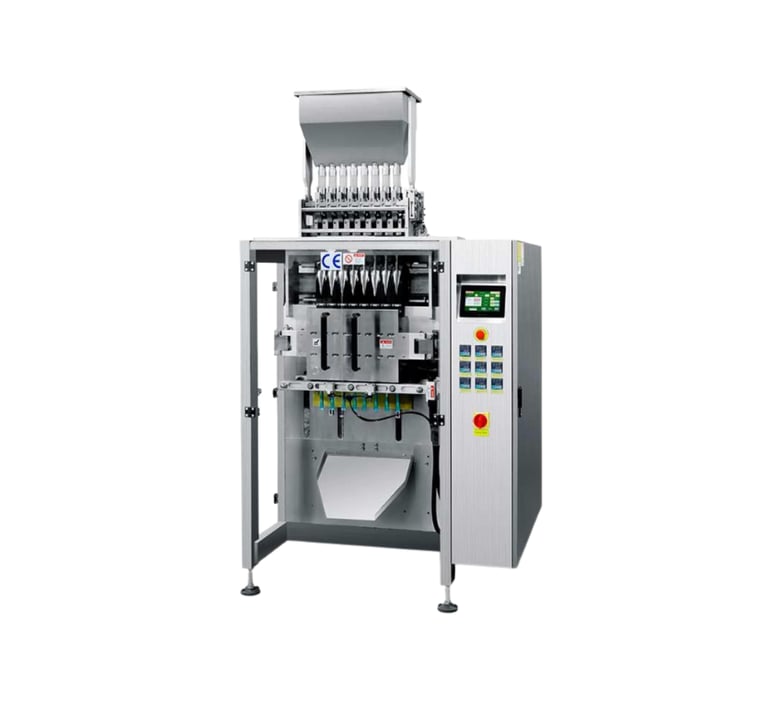

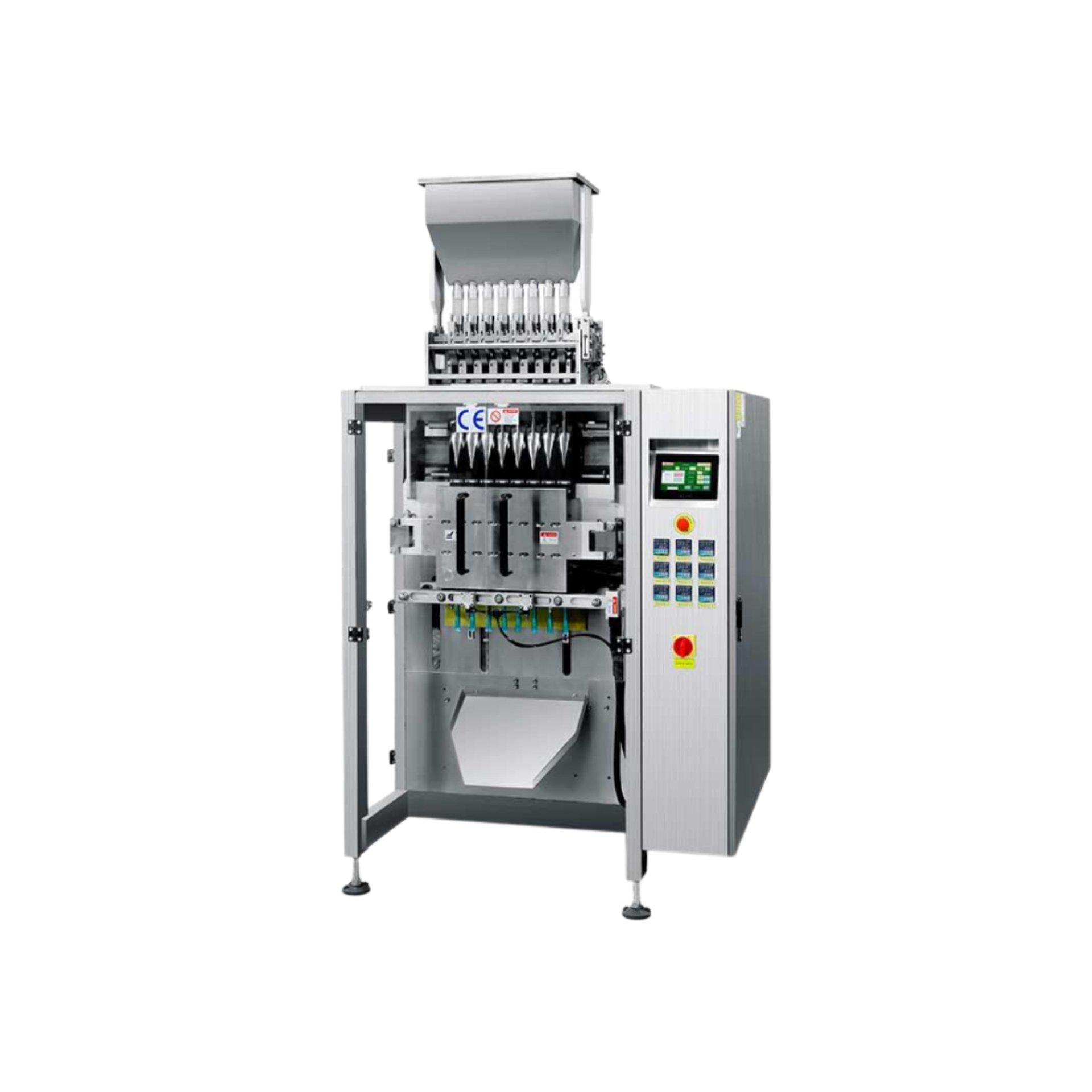

Automatic 4 Side Sachet Multitrack Packing Machine

The Automatic 4-Side Sachet Multitrack Packing Machine is designed for high-speed production of premium-quality sachets with sealing on all four sides. Built on a synchronized multitrack VFFS platform, it ensures precise dosing, uniform sealing, and excellent pouch appearance—making it ideal for pharmaceutical, food, and FMCG applications.

With multiple lanes operating simultaneously, this machine delivers exceptional output while maintaining strict quality and hygiene standards.

Key Features

• 4-Side Seal Sachet Format: Strong, premium packaging with enhanced shelf appeal

• Multitrack Configuration: 2–10 lanes (typical) for high-volume production

• High-Speed Operation: Simultaneous forming, filling, sealing, and cutting

• Flexible Filling Systems: Compatible with auger (powder), cup (granules), or pump (liquids)

• Uniform Seal Quality: Precise temperature control for consistent sealing

• PLC + Touch Screen HMI: Centralized control, recipe storage, and diagnostics

• Compact Footprint: Maximum output with efficient space utilization

• Coding Integration: Inline batch/expiry printing options

Applications

• Pharmaceutical powders and liquids

• Nutraceutical sachets

• Coffee, milk powder, and premixes

• Sauces, ketchup, and liquid condiments

• Cosmetic and personal care products

Technical Specifications

• Machine Type: Multitrack VFFS 4-Side Seal Sachet Packing Machine

• Number of Tracks: 2 to 10 lanes (configurable)

• Filling Range:

  • Powders: 1 g to 50 g

  • Liquids: 1 ml to 50 ml

  • Granules: 1 g to 100 g

• Output Capacity: 150 – 700 sachets/min (based on lanes & product)

• Filling Accuracy:

  • Auger: ±1%

  • Cup: ±2%

  • Pump: ±1%

• Sachet Size (per lane):

  • Width: 20 – 100 mm

  • Length: 40 – 160 mm

• Film Type: Laminated films (PET/PE, BOPP/PE, ALU/PE)

• Control System: PLC with Touch Screen HMI

• Power Supply: 380V / 50 Hz

• Construction: SS304 body; SS316 contact parts (optional)

• Optional Add-ons: Nitrogen flushing, perforation, notch cutter, vision inspection
