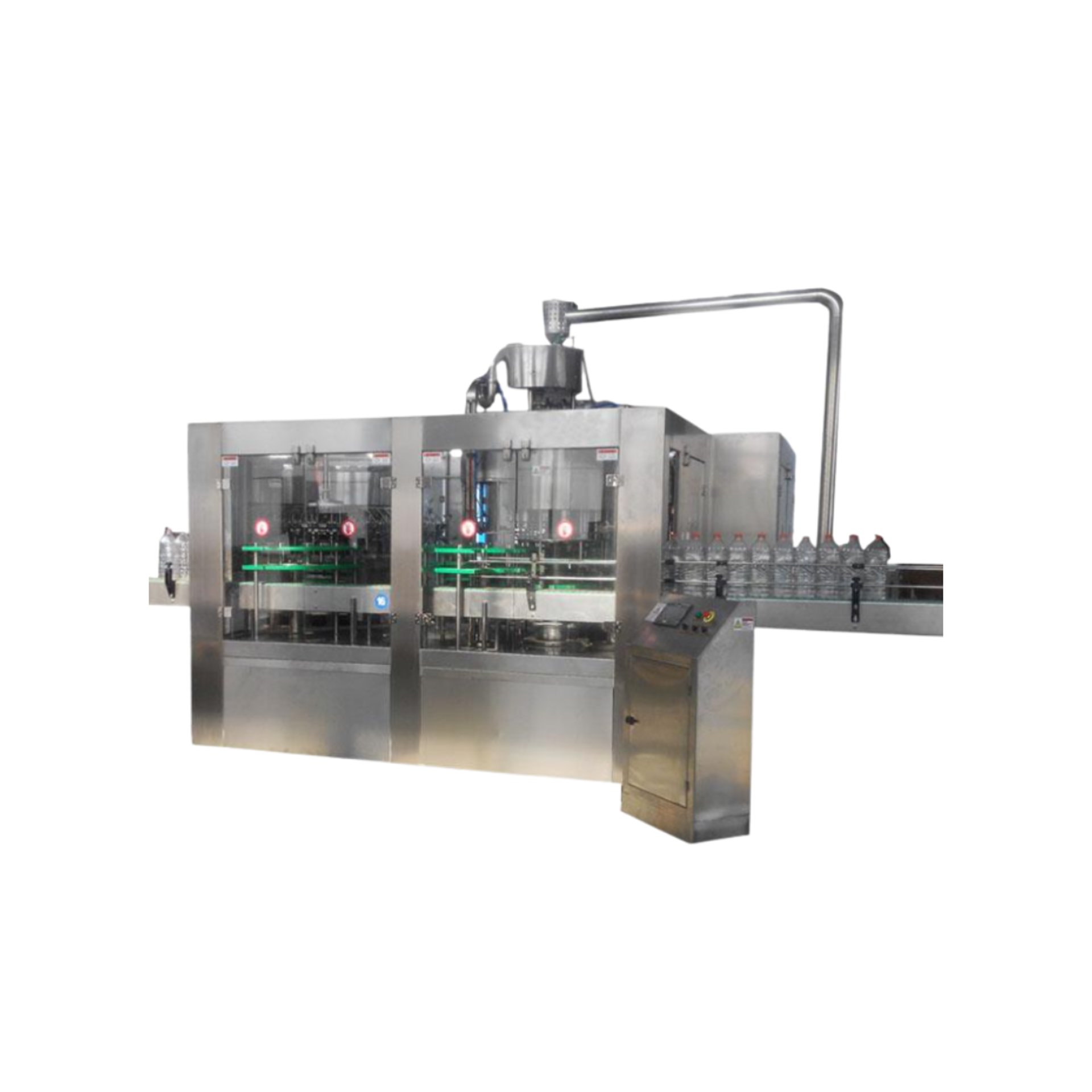

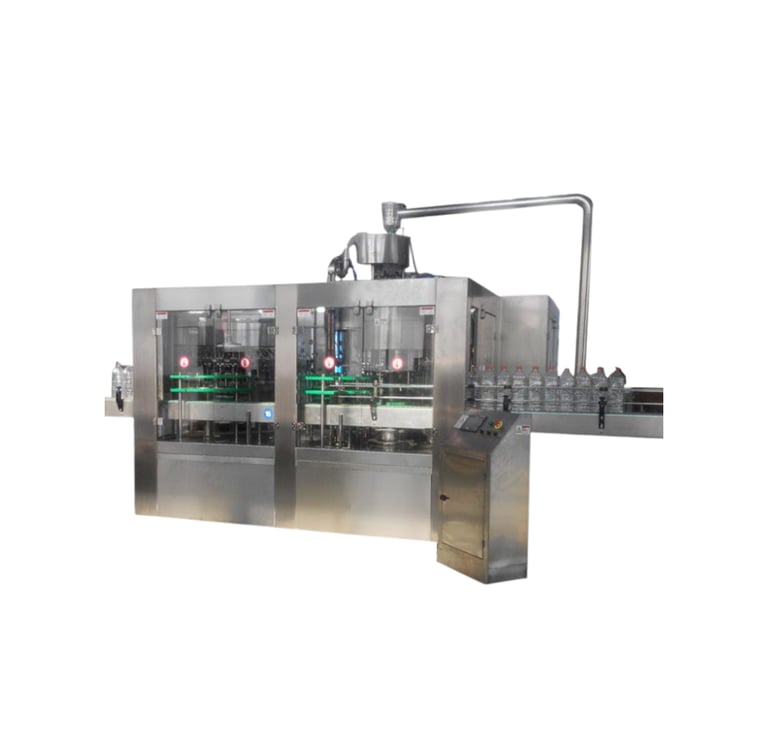

Automatic Bottle Filling and Capping Machine

The Automatic Bottle Filling and Capping Machine is a complete inline solution designed for accurate filling and secure capping of liquids and semi-liquids in bottles. Integrated with a conveyor system, it performs bottle feeding, filling, cap placement, and tightening in a continuous process—ensuring high productivity and consistent quality.

Suitable for food, pharmaceutical, cosmetic, and chemical industries, this machine delivers hygienic operation and reliable performance for medium to high-volume production lines.

Key Features

• Fully Automatic Operation: Continuous bottle feeding, filling, and capping

• Precision Filling System: Piston/pump/gravity/flowmeter options based on product type

• Accurate Capping Mechanism: Screw, ROPP, or press-on capping systems

• Conveyor Integration: Smooth product handling and line synchronization

• PLC with Touch Screen HMI: Easy control, monitoring, and adjustments

• No Bottle – No Fill System: Prevents product wastage

• Adjustable for Multiple Sizes: Handles various bottle shapes and volumes

• Hygienic SS Construction: Suitable for food and pharma applications

Applications

• Beverages, juices, and dairy products

• Edible oils and liquid food products

• Pharmaceutical syrups and liquids

• Cosmetics (shampoo, lotions, creams)

• Chemicals and cleaning liquids

Technical Specifications

• Machine Type: Automatic Bottle Filling & Capping Machine

• Filling Range: 10 ml to 1 liter (customizable)

• Production Capacity: 30 – 120 bottles/min (based on heads & product)

• Filling Accuracy: ±1% (product dependent)

• Bottle Types: PET, glass, HDPE, and other containers

• Capping Types: Screw cap / ROPP / Flip-top / Press cap

• Control System: PLC with Touch Screen HMI

• Power Supply: 220V / 380V, 50 Hz

• Air Requirement: 5–7 bar (for pneumatic operations)

• Material of Construction: SS304 (SS316 contact parts optional)
