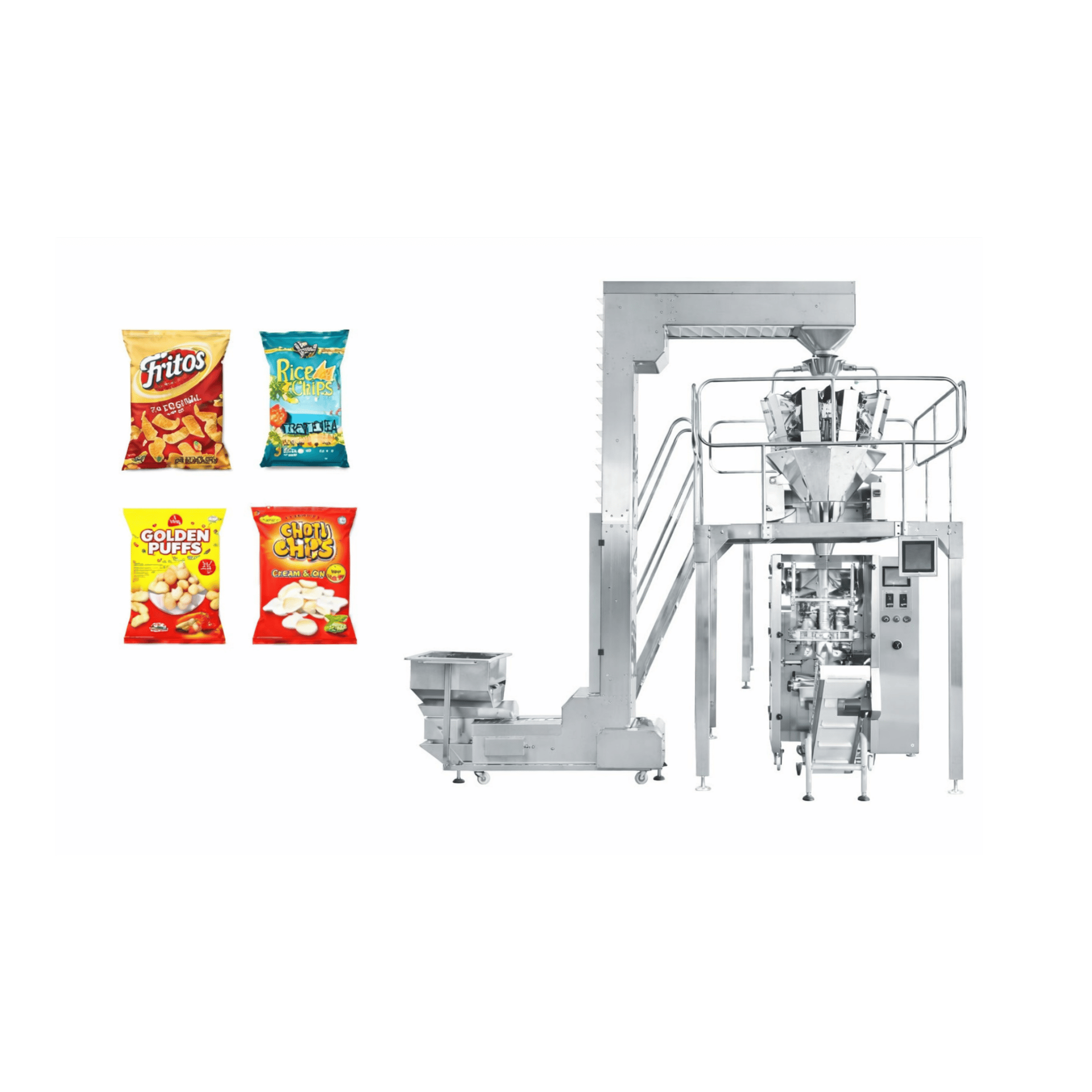

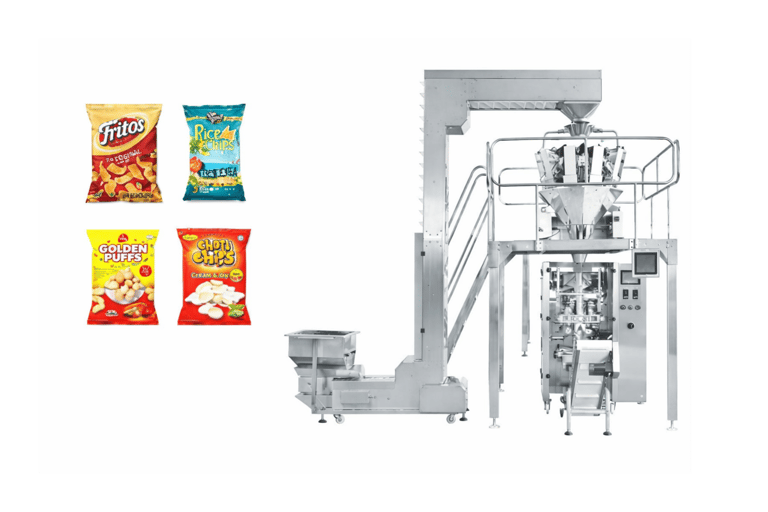

Automatic Collar Type VFFS Packing Machine with Multihead Weigher

The Automatic Collar Type Vertical Form Fill Seal (VFFS) Packing Machine with Multihead Weigher is a high-speed, precision packaging solution designed for free-flowing products such as snacks, namkeen, chips, grains, pulses, and similar items.

This system integrates a multihead weigher with a VFFS unit, enabling accurate weighing, forming, filling, and sealing of pouches in a fully automated process. It ensures consistent output, reduced wastage, and high production efficiency—making it ideal for medium to large-scale manufacturing units.

Key Features

• High-speed automatic pouch formation, filling, and sealing

• Integrated multihead weigher for precise weight control

• Suitable for a wide range of free-flow products

• Robust stainless steel construction for hygiene and durability

• User-friendly control panel with automation support

• Consistent sealing quality with minimal product loss

• Flexible pouch size adjustments

Applications

• Chips & Snacks

• Namkeen & Fryums

• Pulses & Grains

• Dry Fruits

• Whole Spices

• Soya Chunks

• Detergent Powder

• Pesticide Granules

Technical Specifications

• Packing Range -10 gm to 1 kg

• Filling System - Multihead Weigher (10 Head / 14 Head)

• Filling Accuracy - ± 0.1%

• Type of Sealing - Center Seal

• Film Size - Width: 100 mm – 500 mm
  Length: 100 mm – 360 mm

• Film Roll Type - Laminated Roll Film (e.g., Aluminum Foil, Printed Film)

• Speed - 45 to 60 bags per minute (depends on product nature)

• Power Requirement - 3 kW, 230V AC, Single Phase, 50 Hz

• Machine Dimensions - Approx. 72" × 85" × 126"

• Weight - Approx. 1400 kg

• Compressed Air - 6 CFM @ 6 bar

• Optional Features - Batch Coding Device
