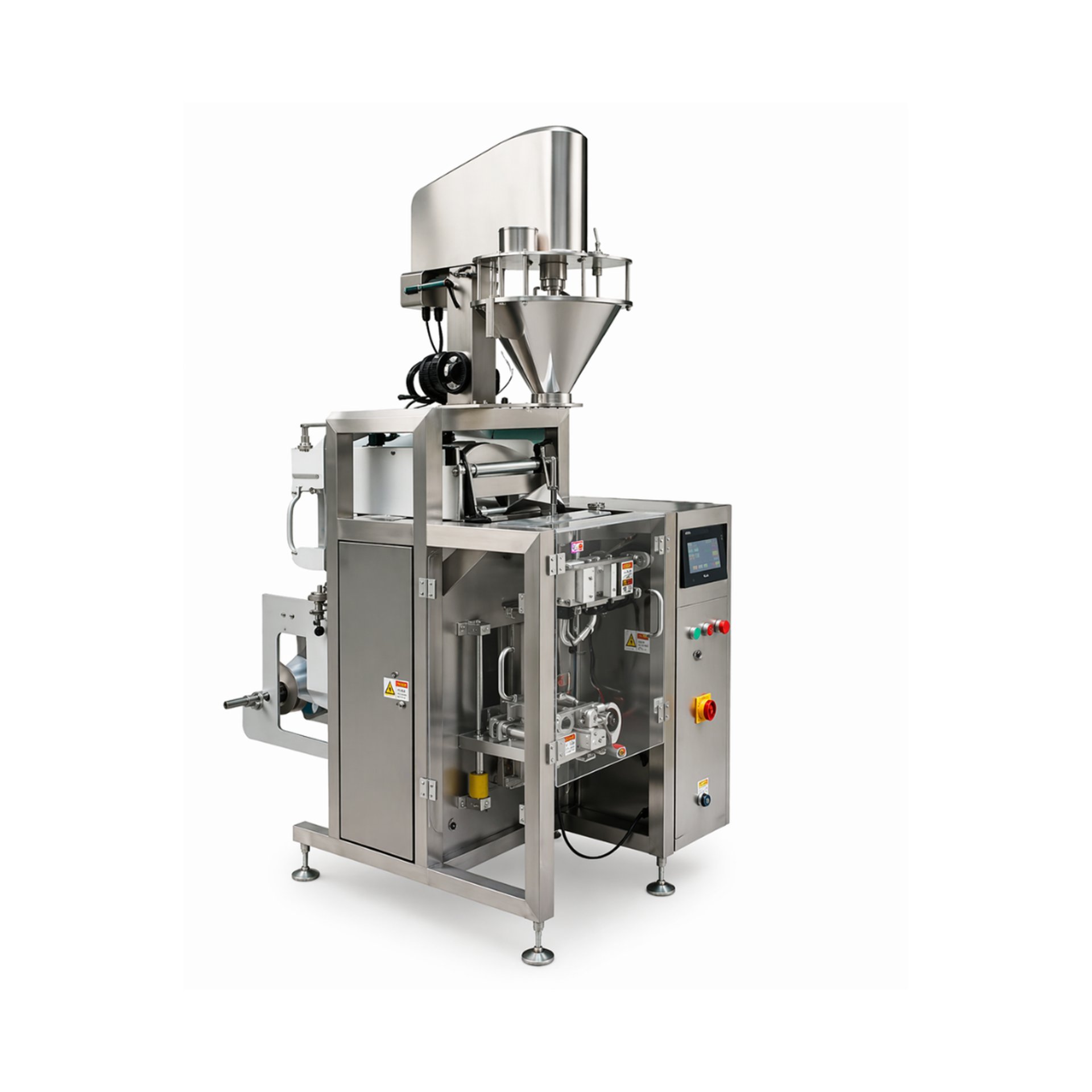

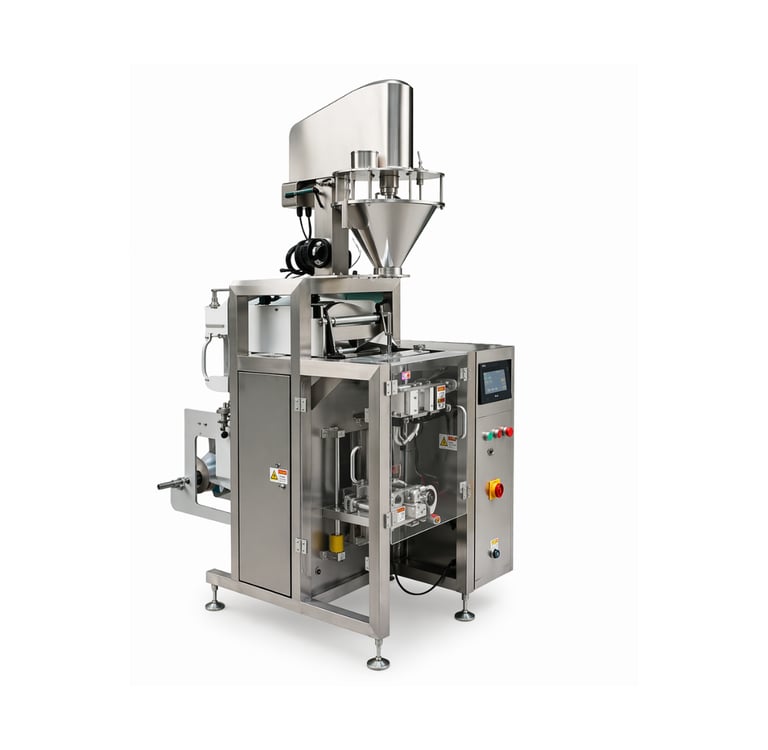

Automatic Collar Type Packing Machine with Servo Auger Filler

The Automatic Collar Type Packing Machine with Servo Auger Filler is an advanced VFFS (Vertical Form Fill Seal) packaging system designed for accurate and high-speed packing of sticky and non-free-flow powders.

Equipped with a servo auger filling mechanism, this machine delivers precise dosing, minimal wastage, and consistent pouch quality. It is ideal for medium to large-scale industries requiring efficient and reliable powder packaging solutions.

Key Features

• Servo auger filler for precise and consistent powder filling

• Suitable for sticky and non-free-flow powder products

• Fully automatic pouch forming, filling, and sealing

• High-speed operation with stable performance

• PLC-based control system for easy operation

• Durable and hygienic SS 304 construction

• Compatible with screw conveyor feeding system

Applications

• Spices Powder (Chilli, Turmeric, Masala)

• Wheat Flour & Gram Flour

• Milk Powder

• Ice Cream Powder

• Pesticide Powder

Technical Specifications

• Packing Range - 50 gm to 500 gm / 250 gm to 1000 gm

• Filling System - Servo Auger Filler

• Sealing Type - Center Seal

• Film Size - Width: 180 mm to 520 mm / Length: 100 mm to 360 mm

• Film Roll Size - OD: 250 mm to 300 mm max / ID: 75 mm

• Film Roll Type - Laminated Film

• Speed - 40 to 60 PPM (depends on product nature & weight)

• Power Requirement - 5 kW, Three Phase

• PLC - Delta / Fuji

• Machine Weight - Approx. 750 kg

• Wooden Case Size - 2200 mm (H) × 1000 mm (W) × 1200 mm (L)

• Optional Features - Batch Coding Device, Batch Cutting Device, Screw Conveyor
