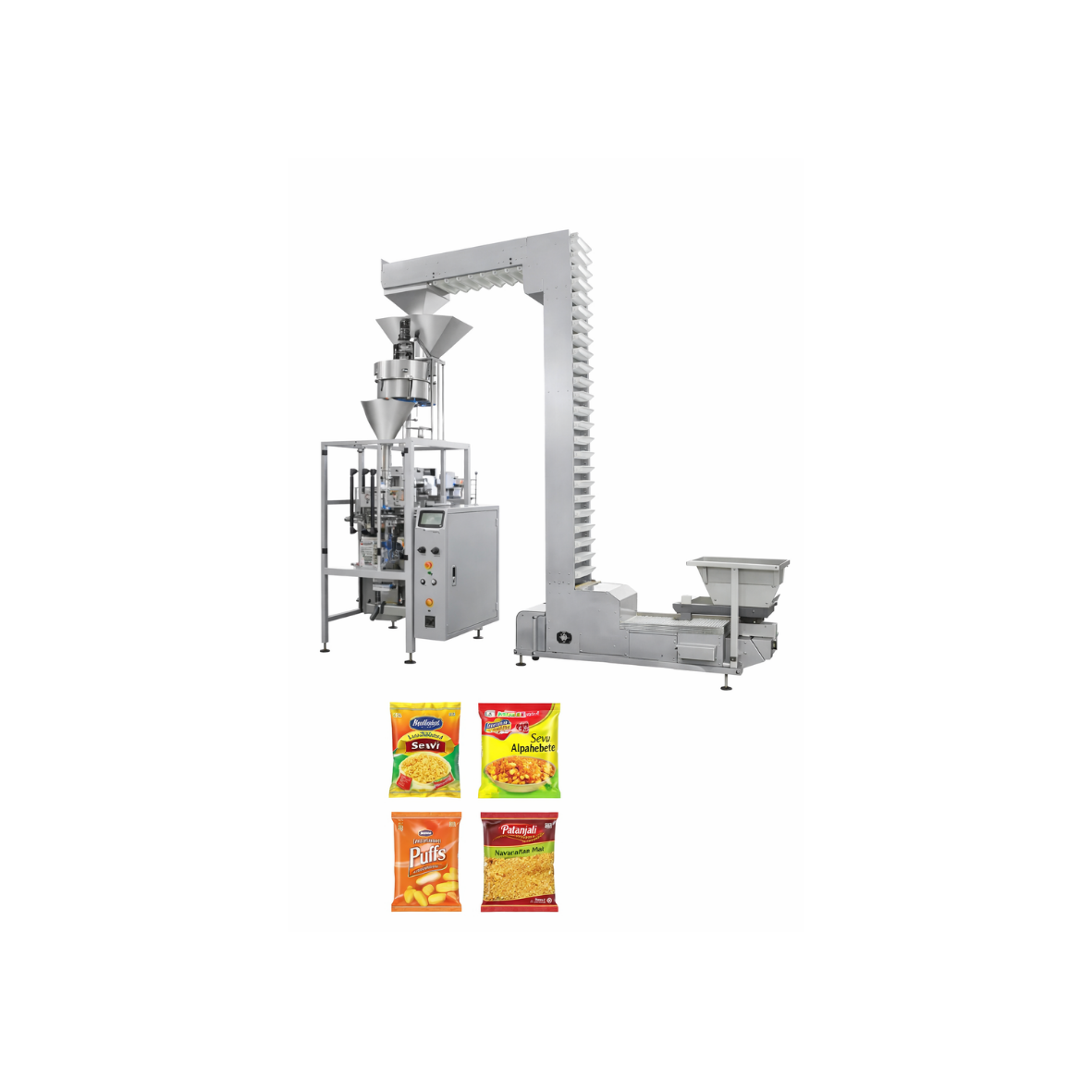

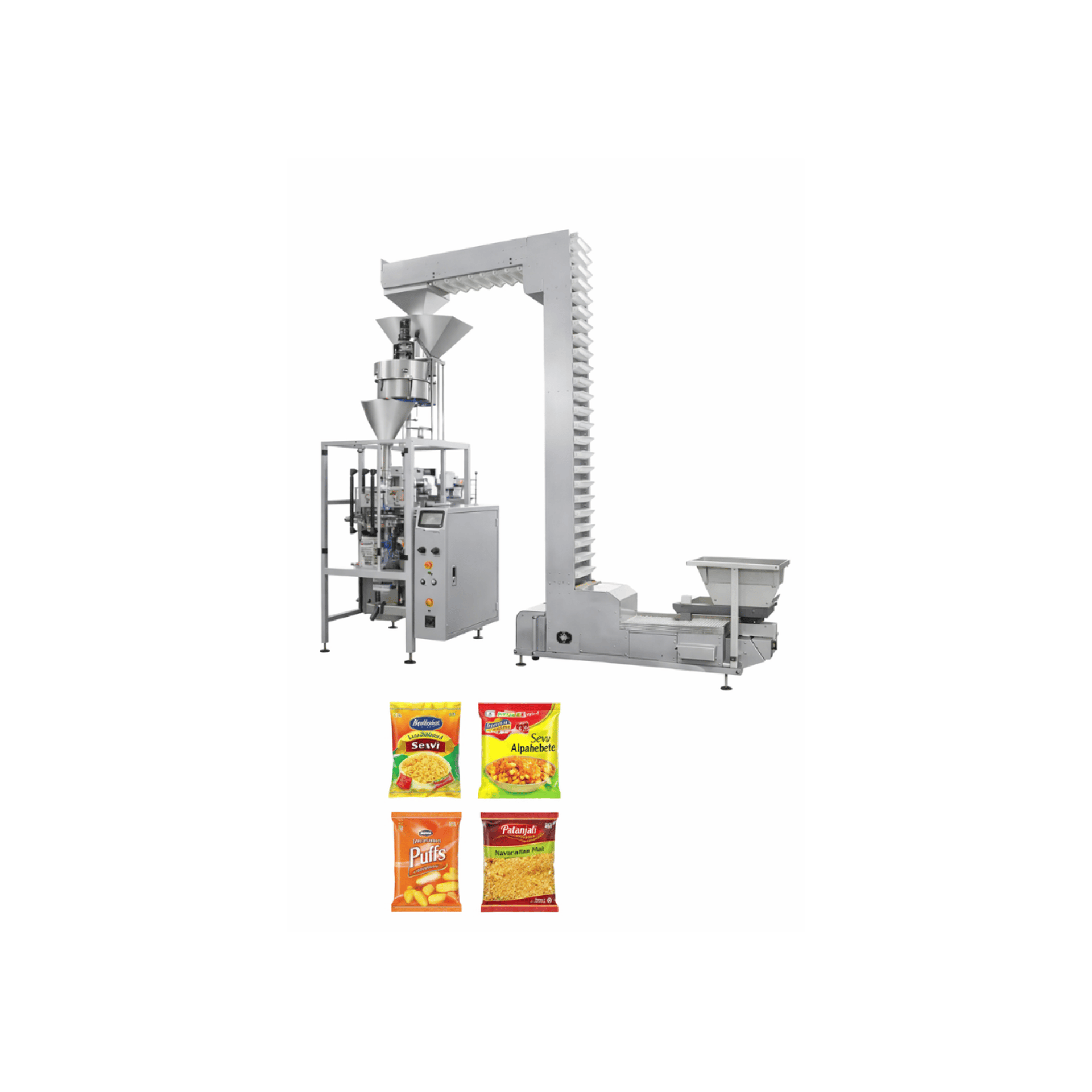

Automatic Collar Type Pouch Packing Machine with Cup Filler

The Automatic Collar Type Pouch Packing Machine with Cup Filler is a high-performance packaging system designed for granules and free-flow powder products. It integrates a volumetric cup filler with a VFFS (Vertical Form Fill Seal) mechanism, enabling precise, continuous, and efficient pouch packaging.

This machine is ideal for industries requiring medium to high-speed production with consistent filling and reliable sealing performance.

Key Features

• Volumetric cup filler for uniform volume-based filling

• Fully automatic pouch forming, filling, and sealing system

• Suitable for a wide range of granular and powder products

• High-speed operation with consistent output

• Durable construction with hygienic design

• Easy-to-use control panel for smooth operation

• Adjustable pouch sizes for flexible packaging requirements

Applications

• Rawa & Broken Wheat

• Grains & Pulses

• Tea & Coffee

• Namkeen & Fryums

• Soya Chunks

• Detergent Powder

• Pesticide Granules

Technical Specifications

• Packing Range - 20 gm – 100 gm ,100 gm – 500 gm ,500 gm – 1 kg

• Filling System - Volumetric Cup Filler

• Type of Sealing - Center Seal

• Packing Material - Suitable for Powders & Granules

• Film Size - Width: 200 mm – 420 mm ,Length: 100 mm – 550 mm

• Film Roll Size - OD: 250 mm – 400 mm max ,ID: 75 mm

• Film Roll Type - Laminated Film

• Speed - 40 to 60 bags per minute (depends on product & fill range)

• Power Requirement - 3 kW, 230V AC, Single Phase, 50 Hz

• Machine Dimensions - 1050 mm (L) × 990 mm (W) × 2100 mm (H)

• Weight - Approx. 750 kg

• Wooden Case Size - 1700 mm × 1000 mm × 1100 mm (H × W × L)

• Optional Features - Batch Coding Device, Batch Cutting Device, Gas Flushing Unit
