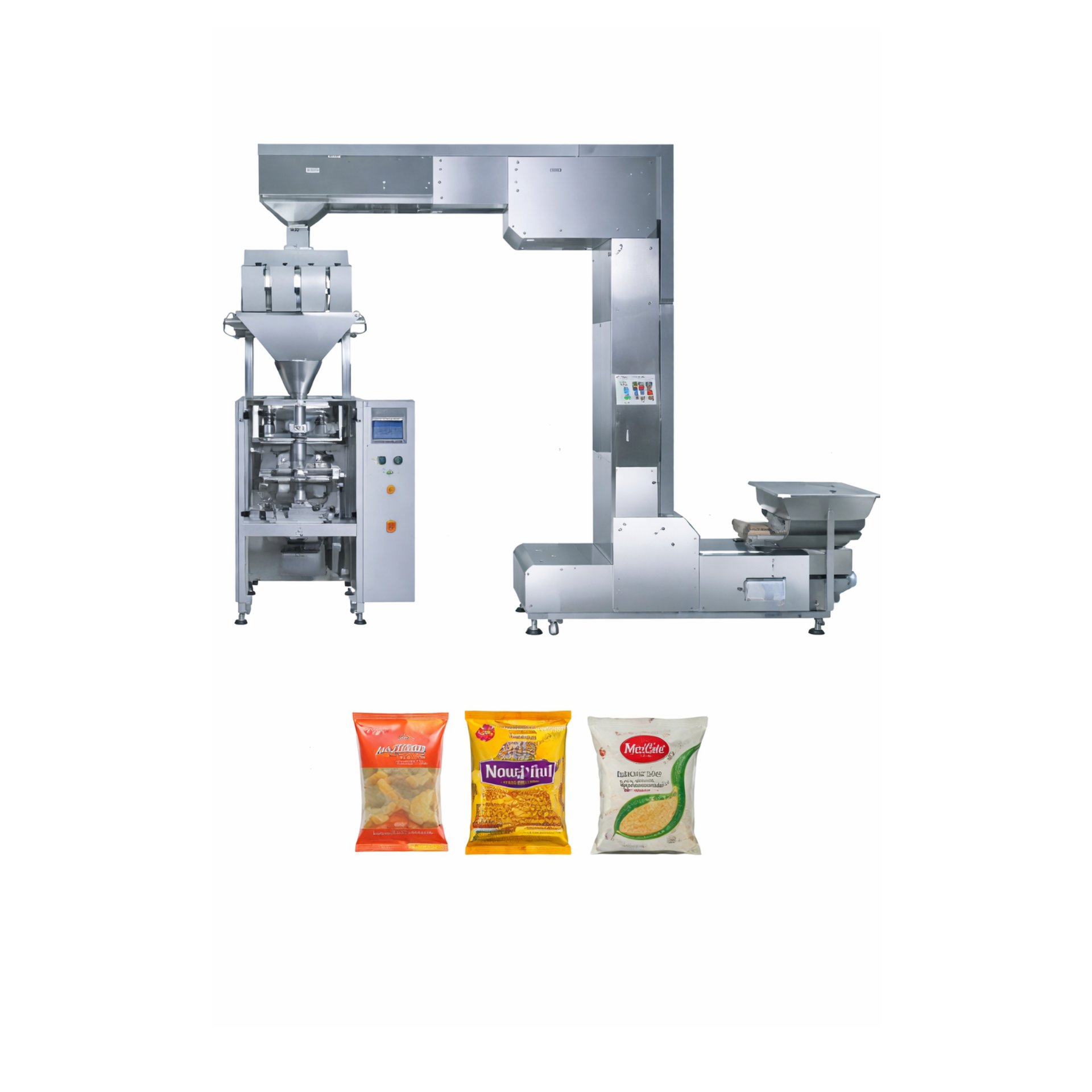

Automatic Collar Type Pouch Packing Machine with Four Head Weigher

The Automatic Collar Type Pouch Packing Machine with Four Head Weigher is a reliable and cost-effective packaging solution designed for granules and free-flow powder products. This machine combines a four head linear weigher with a VFFS (Vertical Form Fill Seal) system, ensuring accurate dosing, efficient packing, and consistent pouch quality.

It is ideal for businesses seeking moderate-speed packaging with high precision, making it suitable for small to medium-scale production environments.

Key Features

• Integrated four head weigher for accurate product measurement

• Automatic pouch forming, filling, and sealing

• Suitable for both granules and free-flow powders

• Strong and hygienic stainless steel construction

• Easy-to-operate control system

• Consistent center sealing with minimal wastage

• Adjustable pouch sizes for flexible packaging needs

Applications

• Pulses & Grains (Rice, Dal, Wheat)

• Tea & Sugar

• Namkeen & Snacks

• Whole Spices

• Detergent Powder

• Pesticide Granules

Technical Specifications

• Packing Range - 50 gm to 1 kg (up to 5 kg optional)

• Filling System - Four Head Weigher

• Type of Sealing - Center Seal

• Film Size - Width: 250 mm – 600 mm
  Length: 100 mm – 450 mm

• Film Roll Size - OD: 250 mm – 400 mm max
  ID: 75 mm

• Film Roll Type - Laminated Film

• Speed - 10 to 30 bags per minute (depends on product type)

• Power Requirement - 5 kW

• Machine Dimensions - 2800 mm (L) × 1700 mm (W) × 4000 mm (H)

• Weight - Approx. 850 kg

• Wooden Case Size - 2500 mm × 1200 mm × 1200 mm (H × W × L)

• Optional Features - Batch Coding Device, Batch Cutting Device
