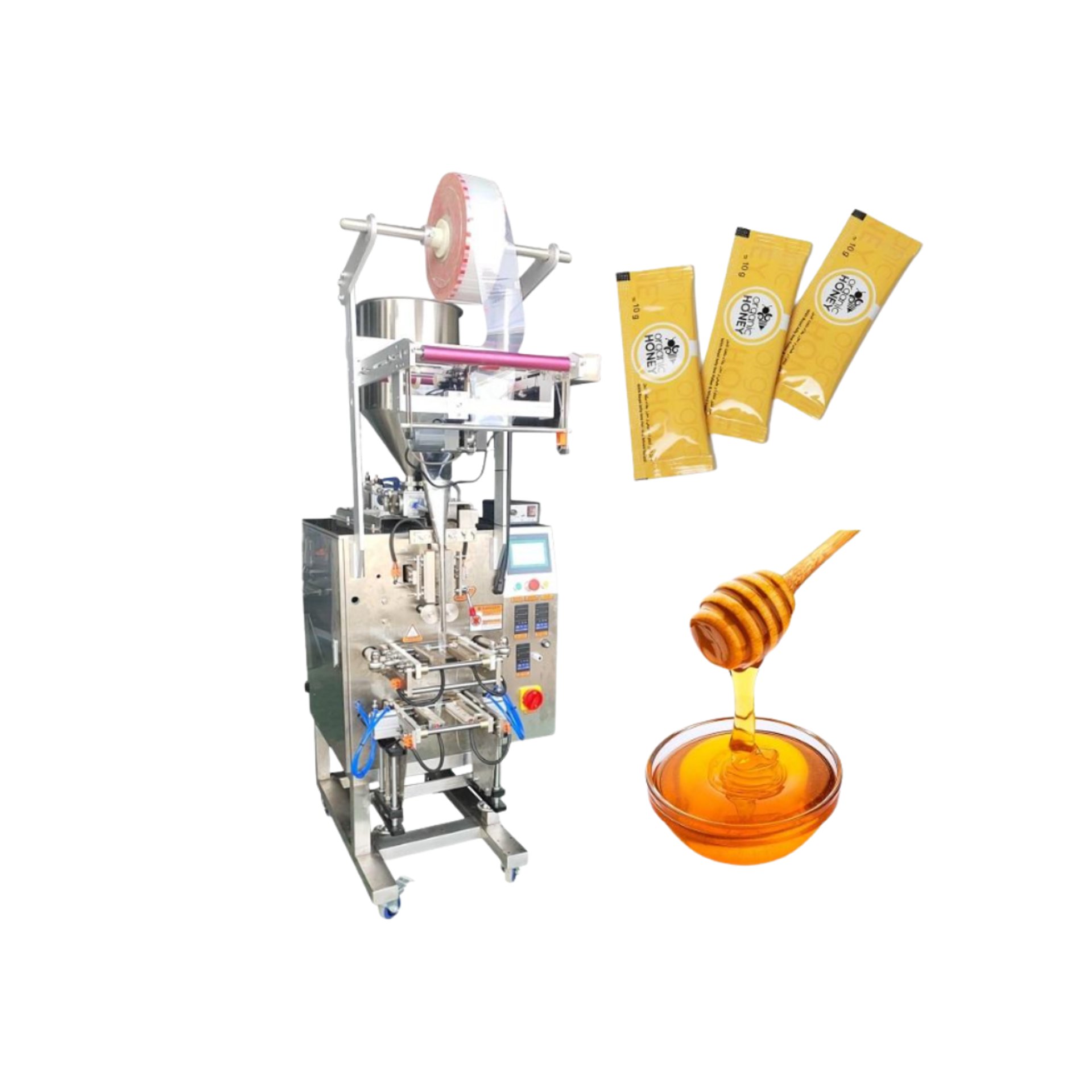

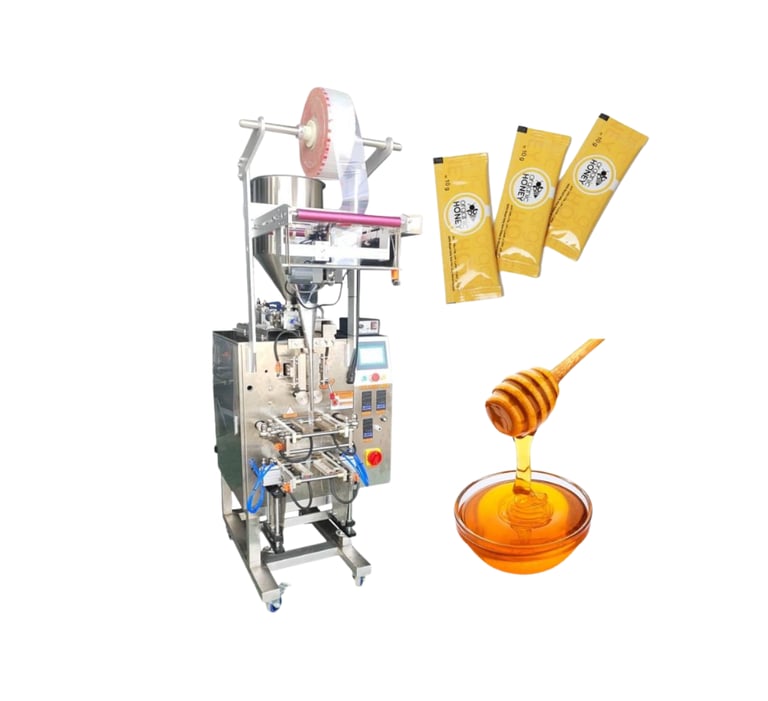

Automatic Honey Stick Multitrack Packing Machine

The Automatic Honey Stick Multitrack Packing Machine is engineered for high-speed production of slim stick packs filled with honey and other viscous liquids. Built on a synchronized multitrack VFFS platform and equipped with precision pump dosing, it ensures accurate fills, clean cut-offs, and strong seals across all lanes.

Designed for hygienic operation and consistent output, it’s ideal for food-grade, single-serve packaging at scale.

Key Features

• Multitrack Stick Pack Format: 2–10 lanes for high throughput in a compact footprint

• Viscous Liquid Dosing: Servo-controlled piston/pump system for accurate filling

• Anti-Drip Nozzles: Clean cut-off to prevent stringing and seal contamination

• Synchronized VFFS Operation: Forming, filling, sealing, and cutting across all lanes

• Uniform Heat Sealing: Precise temperature control for leak-proof seals

• PLC + Touch HMI: Recipes, alarms, and real-time monitoring

• Food-Grade Construction: SS304 body with SS316 contact parts (optional)

• Inline Coding: Batch/expiry printing via ribbon/inkjet/laser

Applications

• Honey sticks and single-serve honey portions

• Syrups and liquid sweeteners

• Chocolate sauce, jams, and spreads (flowable)

• Nutraceutical gels and liquid supplements

• Cosmetic gels and viscous liquids

Technical Specifications

• Machine Type: Multitrack VFFS Stick Pack Machine (Liquid)

• Number of Tracks: 2 to 10 lanes (configurable)

• Filling Range: 5 ml to 20 ml per stick (configurable)

• Output Capacity: 200 – 800 sticks/min (based on lanes & volume)

• Filling Accuracy: ±1% (viscosity and temperature dependent)

• Stick Pack Size (per lane):

  • Width: 15 – 40 mm

  • Length: 80 – 180 mm

• Film Type: Food-grade laminates (PET/PE, BOPP/PE, ALU/PE)

• Control System: PLC with Touch Screen HMI

• Power Supply: 380V / 50 Hz (model dependent)

• Optional Add-ons: Product heating jacket, nitrogen flushing, tear notch, perforation, vision inspection
