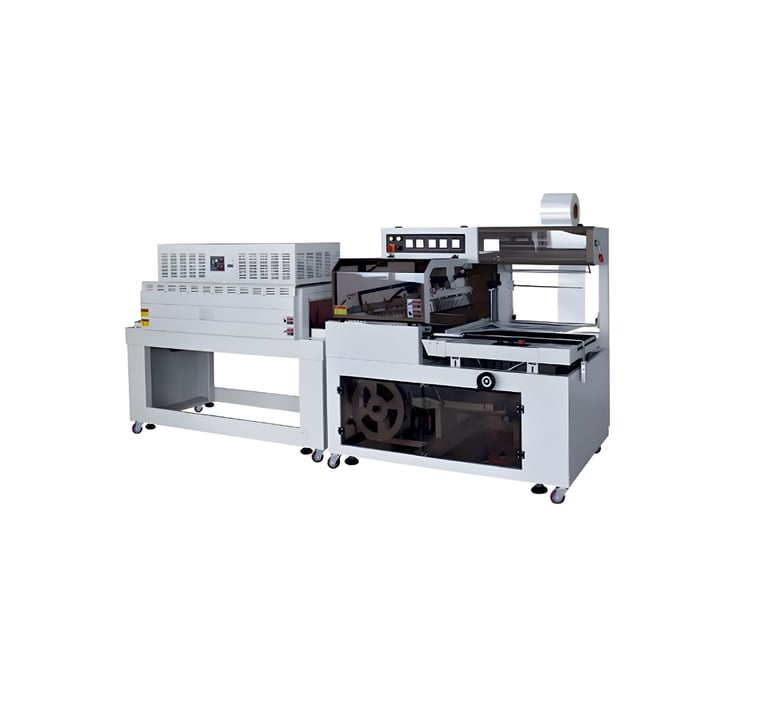

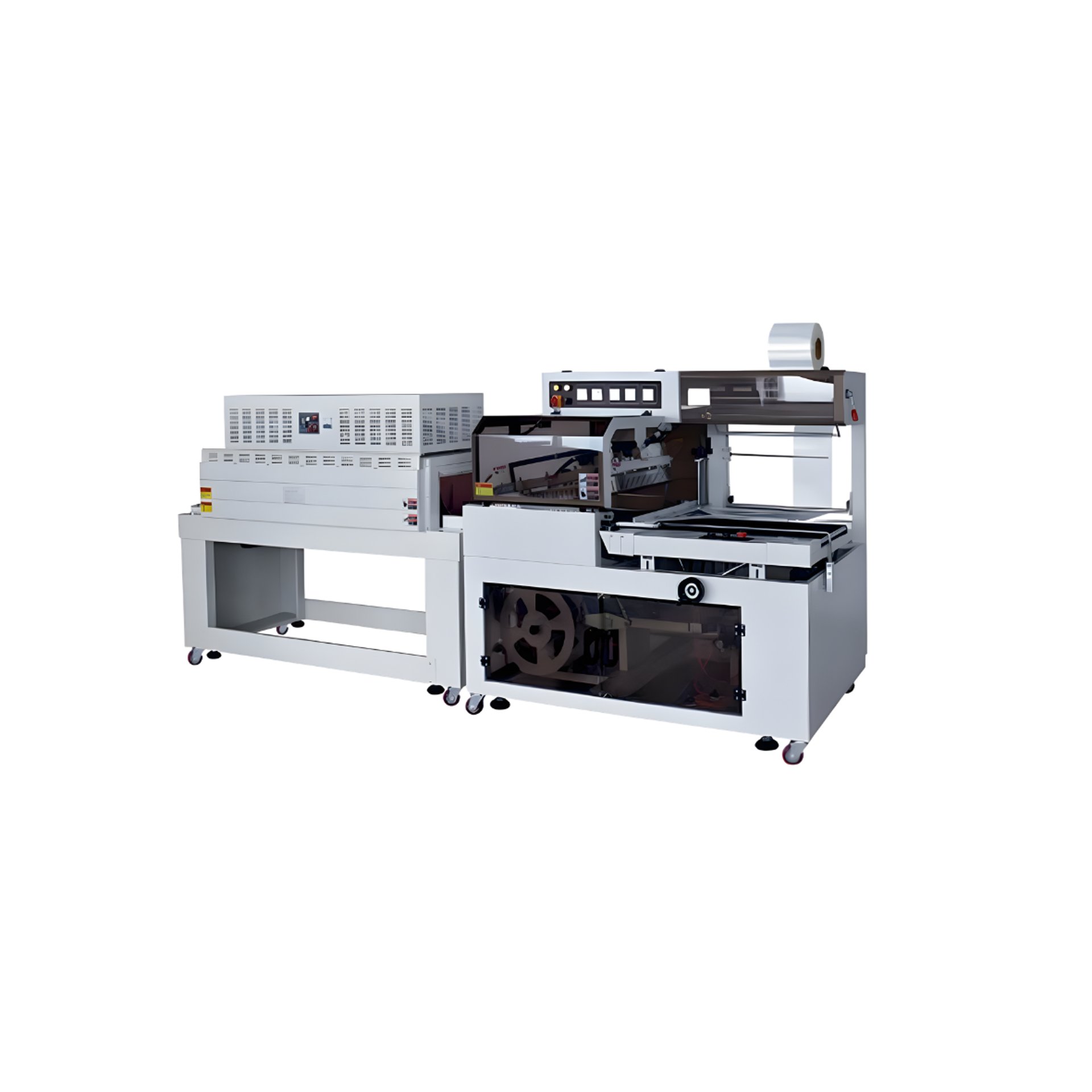

Automatic L Sealer with Shrink Tunnel Kissing Device

The Automatic L Sealer with Shrink Tunnel (Kissing Device) is an advanced packaging solution designed for high-speed, precise sealing and uniform shrink wrapping. Equipped with a “kissing” sealing mechanism, it ensures minimal film waste while delivering clean, strong, and consistent seals.

Integrated with a shrink tunnel, this system provides tight, dust-proof, and moisture-resistant packaging—making it ideal for food, pharmaceutical, and industrial products.

Key Features

• Kissing Sealing Technology: Reduces film waste and improves sealing efficiency

• Fully Automatic Operation: Ideal for high-volume production lines

• Integrated Shrink Tunnel: Ensures uniform and tight shrink wrapping

• High-Speed Performance: Consistent output with minimal manual intervention

• PLC Control System: Easy operation with precise parameter control

• Strong & Clean Seals: Professional packaging finish

• Durable Industrial Design: Built for continuous operation

Applications

• Food and bakery products

• Pharmaceutical packaging

• Cosmetic and retail products

• Electronics and consumer goods

• Multipack shrink wrapping

Technical Specifications

Model: QL5545 L-Type Sealer

• Power Supply: 220V, Single Phase, 50–60 Hz

• Power Consumption: 1.3 kW

• Maximum Sealing Size: 500 × 350 × 100 mm

• Production Capacity: 0 – 20 packs/min (depending on product size)

• Film Type: Center-folded POF (Polyolefin) film

• Maximum Film Width: 600 mm

• Air Requirement: 0.3 m³/min

• Control System: PLC-based control panel

• Machine Body: Painted steel construction

• Machine Dimensions: 1700 × 900 × 1400 mm

• Machine Weight: 320 kg
