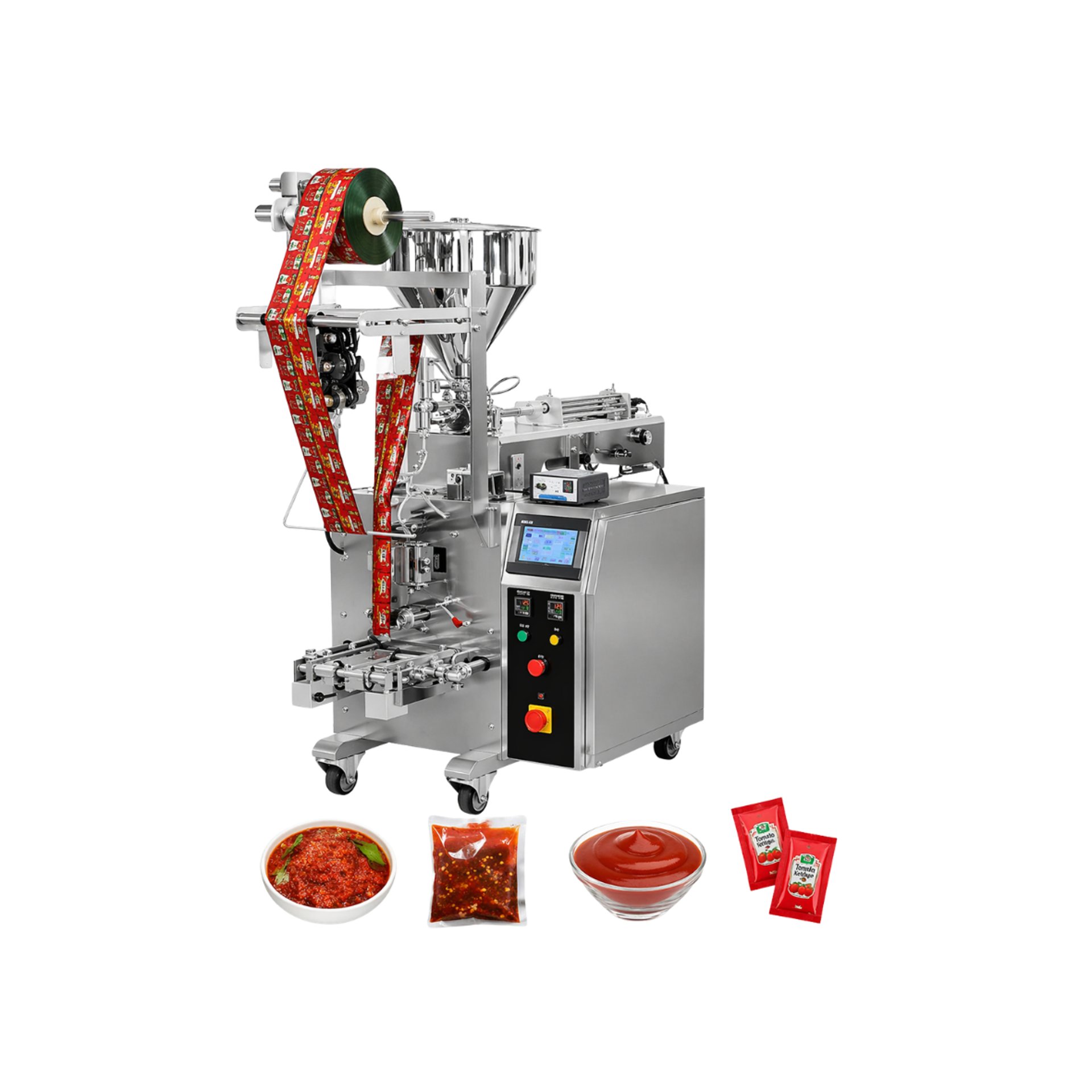

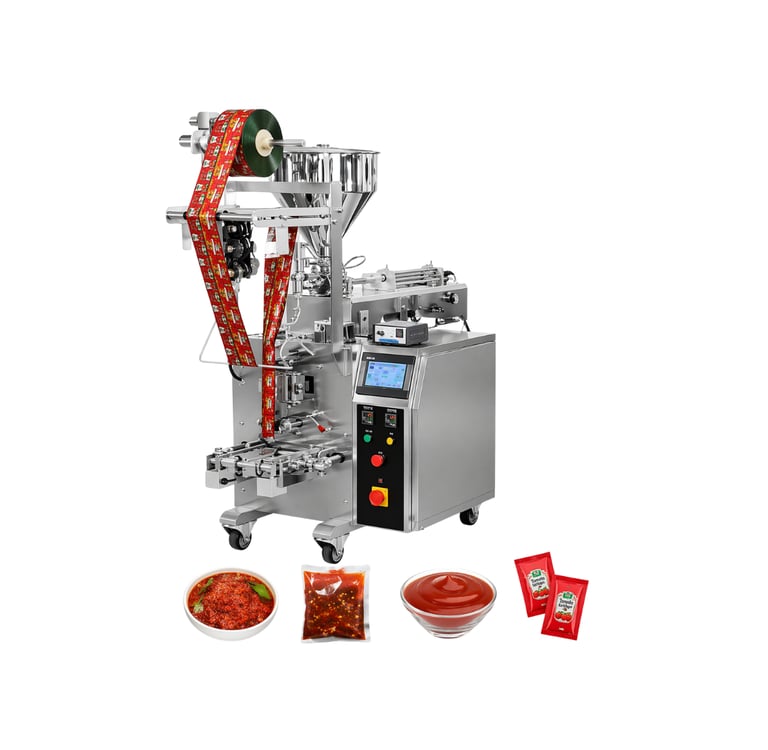

Automatic Pneumatic Liquid Paste Pouch Packing Machine

The Automatic Pneumatic Liquid & Paste Pouch Packing Machine is a highly efficient Form Fill Seal (FFS) system designed for packaging liquids and semi-liquid products. Equipped with a volumetric piston filling system, this machine ensures precise filling, minimal wastage, and consistent pouch quality.

It is ideal for industries dealing with free-flowing liquids, viscous products, and semi-liquid materials, offering reliable and hygienic packaging performance.

Key Features

• Volumetric piston filling system for accurate liquid dosing

• Suitable for both liquid and semi-liquid products

• Pneumatic operation for smooth and consistent performance

• Multiple sealing options (Center Seal / 3 Side Seal / 4 Side Seal)

• Compact design for efficient space utilization

• Hygienic SS 304 contact parts

• Easy-to-operate control system

Applications

• Shampoo & Hair Oil

• Honey & Syrups

• Coconut Oil & Edible Oil

• Tomato Puree & Sauces

• Grease & Industrial Liquids

• Cosmetic & Chemical Liquids

Technical Specifications

• Packing Range - 2 ml to 20 ml / 20 ml to 50 ml / 50 ml to 100 ml

• Filling System - Volumetric Piston Filling

• Filling Accuracy - ±0.1%

• Sealing Type - Center Seal / 3 Side Seal / 4 Side Seal

• Packing Material - Liquid & Semi-Liquid

• Speed Capacity - 35 to 50 pouches per minute

• Machine Dimensions - 780 mm × 650 mm × 1950 mm (L × W × H)

• Power Requirement - 2 kW, Single Phase

• Contact Parts - SS 304

• Machine Weight - Approx. 430 kg

• Optional Features - Batch Coding Device
