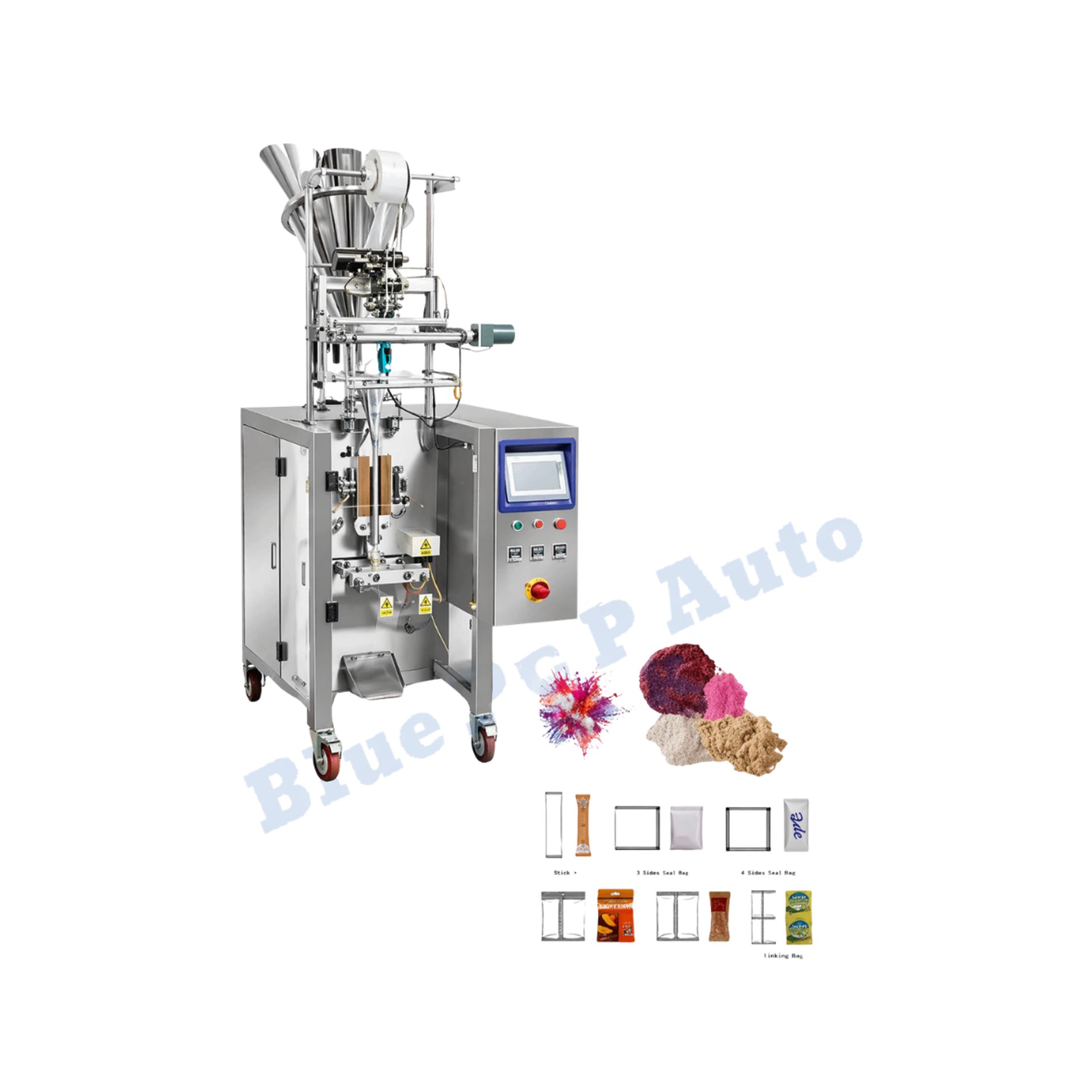

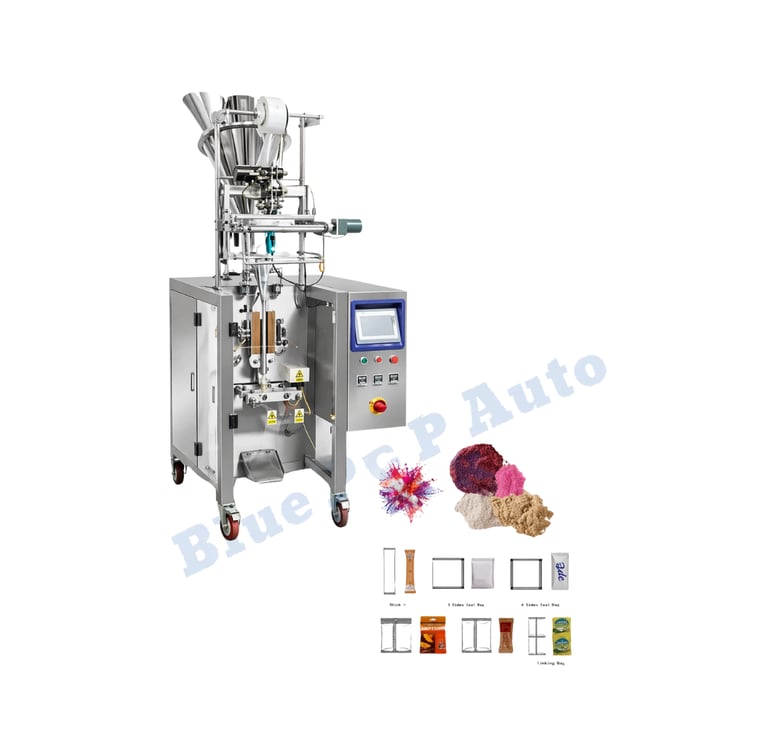

Automatic Pneumatic Pharmaceutical Pouch Packing Machine with Servo Auger Filler

The Automatic Collar Type High Speed Packing Machine with Servo Auger Filler is a high-performance VFFS (Vertical Form Fill Seal) system designed for small-size, high-speed powder packaging. Equipped with a servo auger filling system, it ensures precise dosing and consistent pouch quality even at higher speeds.

This machine is ideal for industries requiring fast production rates with high accuracy, especially for fine and sticky powders.

Key Features

• High-speed operation for maximum productivity

• Servo auger filler for precise powder dosing

• Suitable for sticky and non-free-flow powders

• Fully automatic pouch forming, filling, and sealing

• Compact design for small pouch packaging

• PLC-based control system for smooth operation

• Hygienic SS 304 contact parts

Applications

• Spices Powder (Chilli, Turmeric, Masala)

• Gram Flour

• Milk Powder

• Ice Cream Powder

• Pharmaceutical Powder

• Pesticide Powder

Technical Specifications

• Packing Range - 5 gm to 50 gm

• Filling System - Servo Auger Filler

• Sealing Type - Center Seal

• Film Size - Width: 120 mm to 250 mm / Length: 80 mm to 200 mm

• Film Roll Size - OD: 250 mm to 300 mm max / ID: 75 mm

• Film Roll Type - Laminated Film

• Speed - 60 to 90 pouches per minute (depends on product nature)

• Power Requirement - 5 kW, Three Phase

• Machine Weight - Approx. 650 kg

• Wooden Case Size - 2200 mm (H) × 1000 mm (W) × 1200 mm (L)

• Optional Features - Batch Coding Device, Batch Cutting Device, Screw Conveyor
