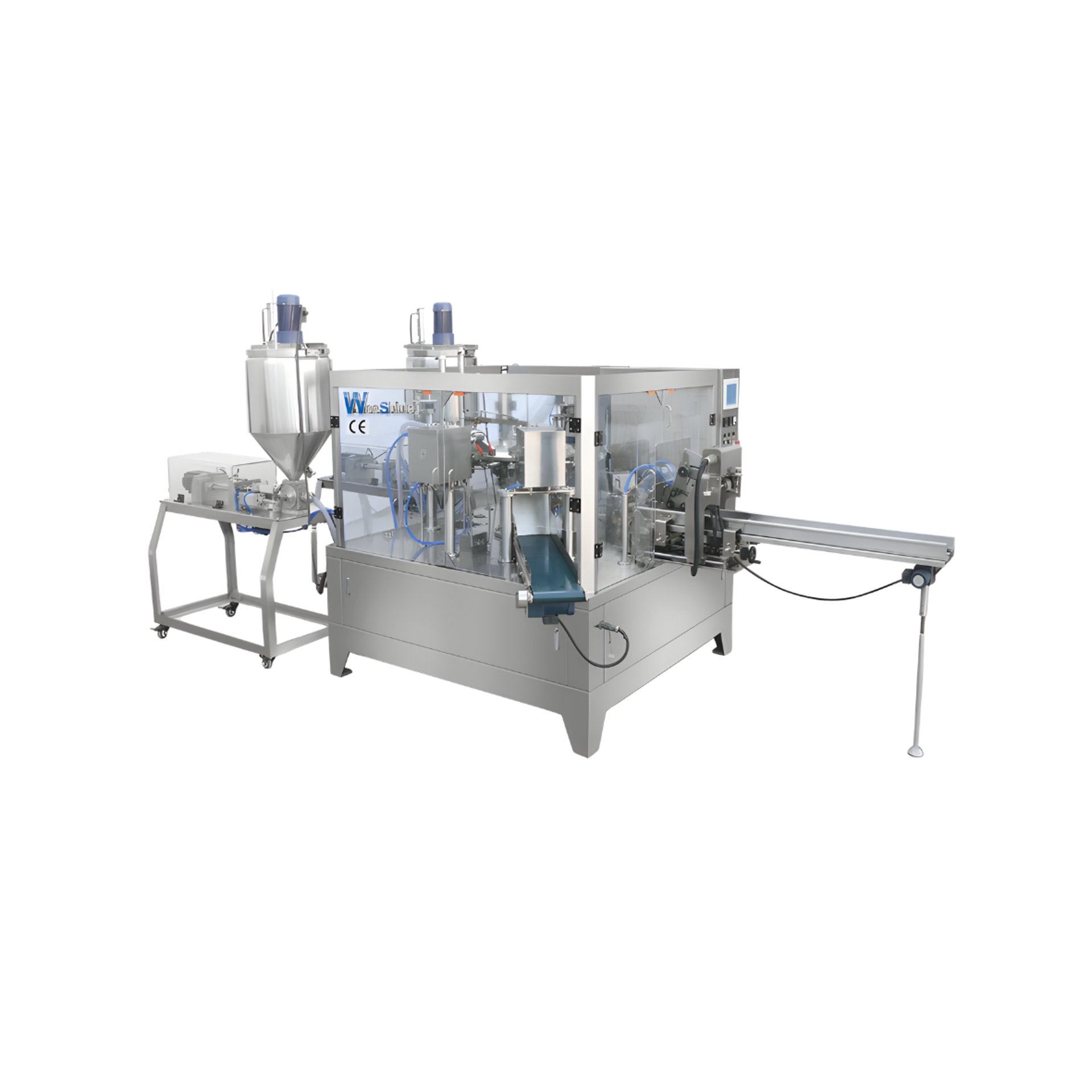

Automatic Rotary Pick Fill Seal Powder Packing Machine with Liquid Filler

The Automatic Rotary Pick Fill Seal Packing Machine with Liquid Filler is a high-performance system designed for precise and hygienic filling of liquids and semi-liquids into premade pouches. Using a multi-station rotary mechanism, it automatically picks pouches, opens them, fills accurate volumes using a piston or pump-based system, and seals them with consistent quality.

Ideal for premium packaging applications, this machine ensures high productivity, excellent pouch presentation, and reliable operation in continuous production environments.

Key Features

• Rotary Pick-Fill-Seal System: Multi-station operation for efficient pouch handling

• Precision Liquid Filling: Piston/pump-based system for accurate dosing

• Premade Pouch Compatibility: Supports stand-up, zipper, and flat pouches

• Anti-Drip Filling Nozzles: Clean filling with minimal spillage

• High-Speed Operation: Continuous indexing for improved productivity

• PLC with Touch Screen HMI: Easy operation, monitoring, and control

• Strong Sealing System: Leak-proof and uniform sealing quality

• No Pouch – No Fill Safety: Reduces product wastage

Applications

• Edible oils and liquid food products

• Sauces, ketchup, and syrups

• Honey and viscous liquids

• Shampoo, liquid detergents, and cosmetics

• Chemical and pharmaceutical liquids

Technical Specifications

• Machine Type: Rotary Premade Pouch Packing Machine with Liquid Filler

• Number of Stations: 6 / 8 / 10 (model dependent)

• Filling Range: 10 ml to 1 liter (depending on configuration)

• Packaging Speed: 20 – 60 pouches/min (product dependent)

• Filling Accuracy: ±1% (based on liquid viscosity)

• Pouch Types: Stand-up (Doypack), zipper pouch, flat pouch, gusseted pouch

• Pouch Size Range: Width 80 – 300 mm, Length 100 – 400 mm

• Control System: PLC with Touch Screen HMI

• Power Supply: 380V / 50 Hz

• Air Requirement: 5–7 bar compressed air

• Material of Construction: SS304 (SS316 contact parts optional)
