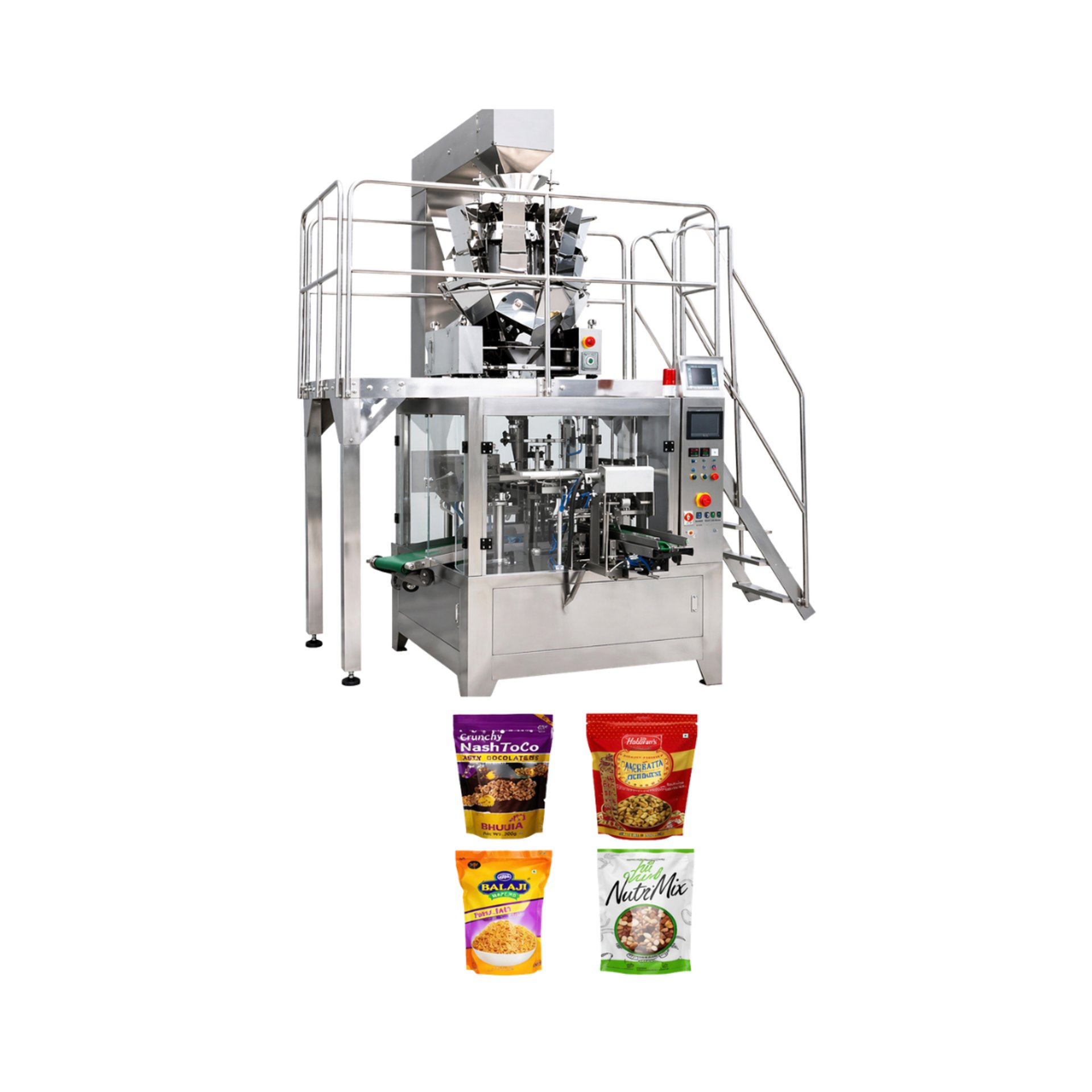

Automatic Rotary Pick Fill Seal Pouch Packing Machine with Multihead Weigher
Automatic Rotary Pick Fill Seal Pouch Packing Machine with Multihead Weigher

The Automatic Rotary Pick Fill Seal Pouch Packing Machine with Multihead Weigher is a high-performance packaging solution designed for granule and solid products. This machine operates on a rotary mechanism that picks pre-made pouches, fills them using a multihead weigher, and seals them efficiently.

It is ideal for packaging products in stand-up pouches, zipper pouches, and spouted pouches, delivering high accuracy, premium packaging quality, and excellent production efficiency.

Key Features

  • Rotary pick-fill-seal mechanism for continuous operation

  • Multihead weigher for high-precision filling

  • Supports multiple pouch formats (stand-up, zipper, spout, flat)

  • Suitable for granules and solid products

  • Advanced PLC control with user-friendly interface

  • High-speed and consistent packaging output

  • Built-in safety and error detection systems

Applications

  • Nuts & Dry Fruits

  • Candy & Confectionery

  • Raisins & Dates

  • Chips & Snacks

  • Cookies & Biscuits

  • Seeds & Granules

Technical Specifications

  • Bag Material - Laminated Film / PE / PP

  • Bag Type - Stand-up pouch, zipper pouch, spout pouch, flat pouch

  • Filling Range - 10 gm to 5000 ml

  • Filling Accuracy - ±0.5% to ±1%

  • Bag Size -

    • Type 1 - Width: 100 mm to 200 mm / Length: 100 mm to 350 mm

    • Type 2 - Width: 150 mm to 260 mm / Length: 100 mm to 350 mm

    • Type 3 - Width: 200 mm to 300 mm / Length: 200 mm to 450 mm

  • Speed - 10 to 60 bags per minute

  • Voltage - 380V, 3 Phase, 50/60 Hz

  • Total Power - 5.5 kW

  • Compressed Air - 0.6 m³/min

  • Safety Features -

    • Door open alarm with emergency stop

    • Low air pressure alarm

    • Sealing temperature abnormal alarm

    • No pouch / pouch open error detection (no fill, no seal)
