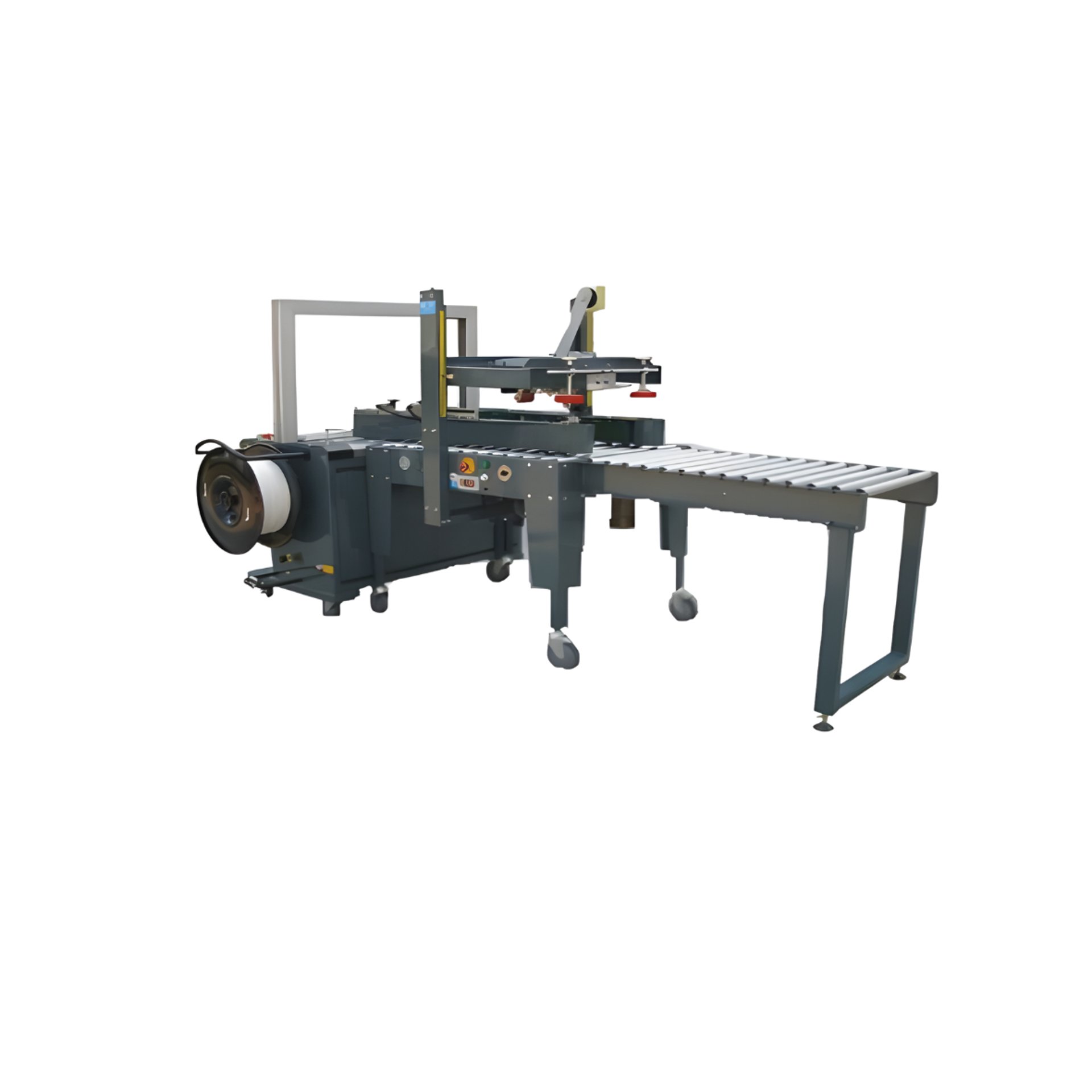

Carton Sealer Auto Packing Line(BPA 102PLS)

The Carton Sealer Auto Packing Line (BPA 102PLS) is a fully integrated solution designed for high-speed carton sealing and automated packaging operations. This system combines conveyor movement, automatic tape sealing, and optional strapping integration, enabling a seamless and efficient packaging workflow.

It is ideal for industries requiring continuous, high-volume packaging with minimal manual intervention, ensuring consistent output and improved productivity.

Key Features

• Fully automated carton sealing and packaging line

• Conveyor-based system for smooth product flow

• High-speed operation for large-scale production

• Compatible with BOPP and PVC adhesive tapes

• Option to integrate strapping system

• Adjustable working height for flexibility

• Robust industrial design for continuous use

Applications

• E-commerce Fulfillment Centers

• FMCG Packaging Lines

• Manufacturing & Distribution Units

• Logistics & Warehousing

• Export Packaging

Technical Specifications

Model - BPA 102PLS (Auto Packing Line)

• Voltage - AC 220V / 50 Hz

• Gross Power - 1100 W

• Maximum Carton Size - 600 mm × 500 mm × 500 mm (L × W × H)

• Minimum Carton Size - 180 mm × 300 mm × 130 mm (L × W × H)

• Speed - 16 m/min

• Production Capacity - Approx. 600 cartons per hour

• Working Table Height - 830 mm

• Adhesive Tape - BOPP / PVC (Width: 60 mm or 76 mm)

• Strapping Belt Compatibility - Plastic strap width 9 mm to 15 mm (thickness 0.5 mm to 1.1 mm)

• Air Compressor (Optional) - 2–3 liters at 5 bar

• Machine Dimensions - 6650 mm × 1420 mm × 1565 mm (L × W × H)

• Net Weight - Approx. 385 kg
