Collar Type Powder Packing Machine

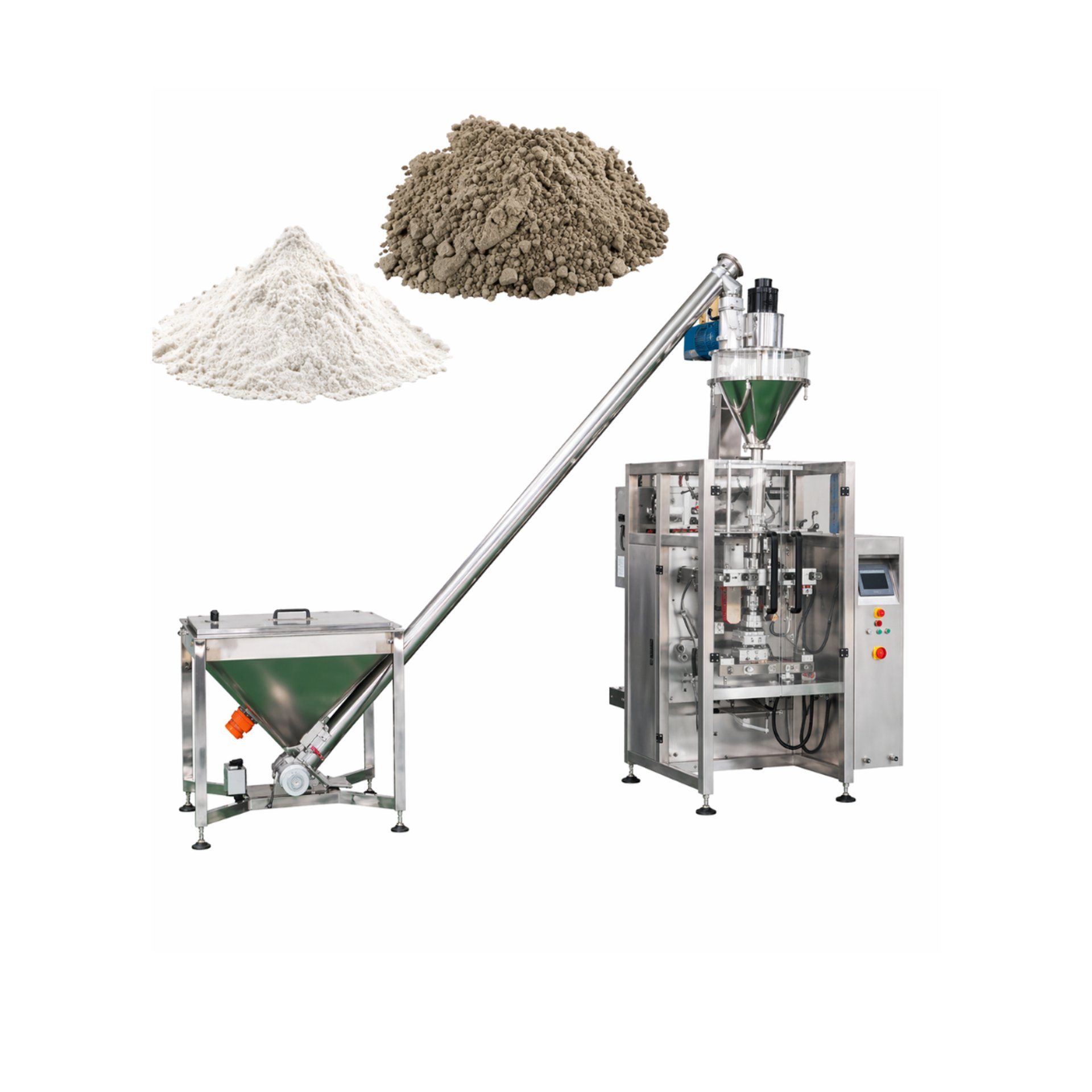

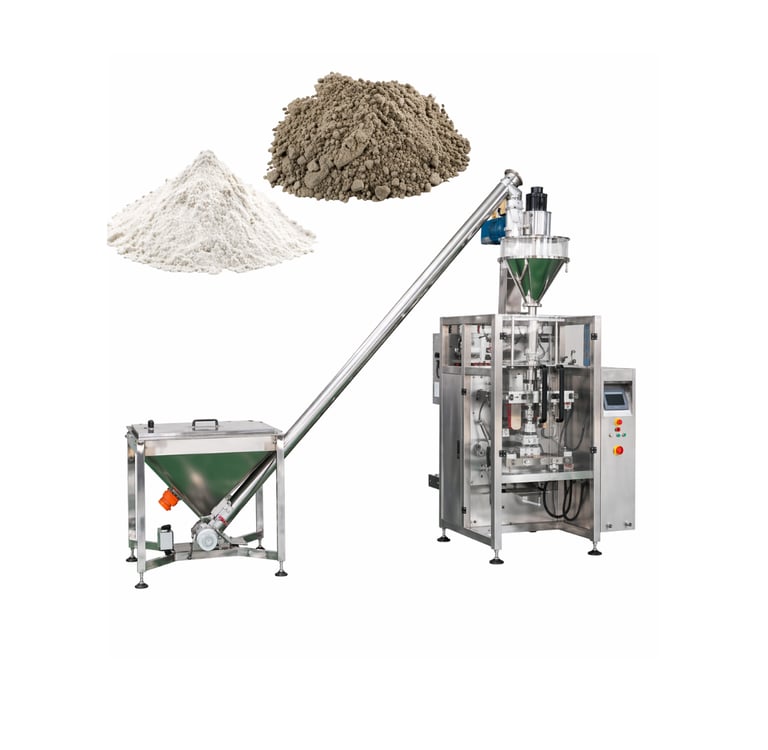

The Collar Type Powder Packing Machine is a high-efficiency VFFS (Vertical Form Fill Seal) system integrated with a servo auger filler, specifically designed for sticky and non-free-flow powder products. This machine ensures precise filling, consistent sealing, and reliable performance for demanding powder packaging applications.

It is ideal for industries requiring accurate dosing and higher output, especially for fine powders that require controlled handling.

Key Features

• Servo auger filling system for high-precision powder dosing

• Suitable for sticky and non-free-flow powders

• Automatic pouch forming, filling, and sealing

• Robust construction for continuous industrial use

• PLC-based control system for efficient operation

• Hygienic SS 304 contact parts

• Compatible with screw conveyor feeding system

Applications

• Spices Powder (Chilli, Turmeric, Masala)

• Wheat Flour & Gram Flour

• Milk Powder

• Ice Cream Powder

• Pesticide Powder

Technical Specifications

• Filling System - Servo Auger Filling

• Filling Accuracy - ±0.1% (depends on product nature)

• Sealing Type - Center Seal

• Filling Range - Up to 1000 gm

• Packing Material - Sticky Powder

• Film Roll Size - Width: 100 mm to 400 mm / Length: 80 mm to 240 mm

• Speed Capacity - 30 to 45 pouches per minute

• Machine Dimensions - 2500 mm × 900 mm × 1000 mm (H × W × L)

• Power Requirement - 440V Three Phase

• PLC - Delta / Fuji

• Contact Parts - SS 304

• Wooden Case Size - 2650 mm × 1200 mm × 1200 mm (H × W × L)

• Machine Weight - Approx. 700 kg

• Optional Features - Batch Coding Device, Batch Cutting Device, Screw Conveyor
