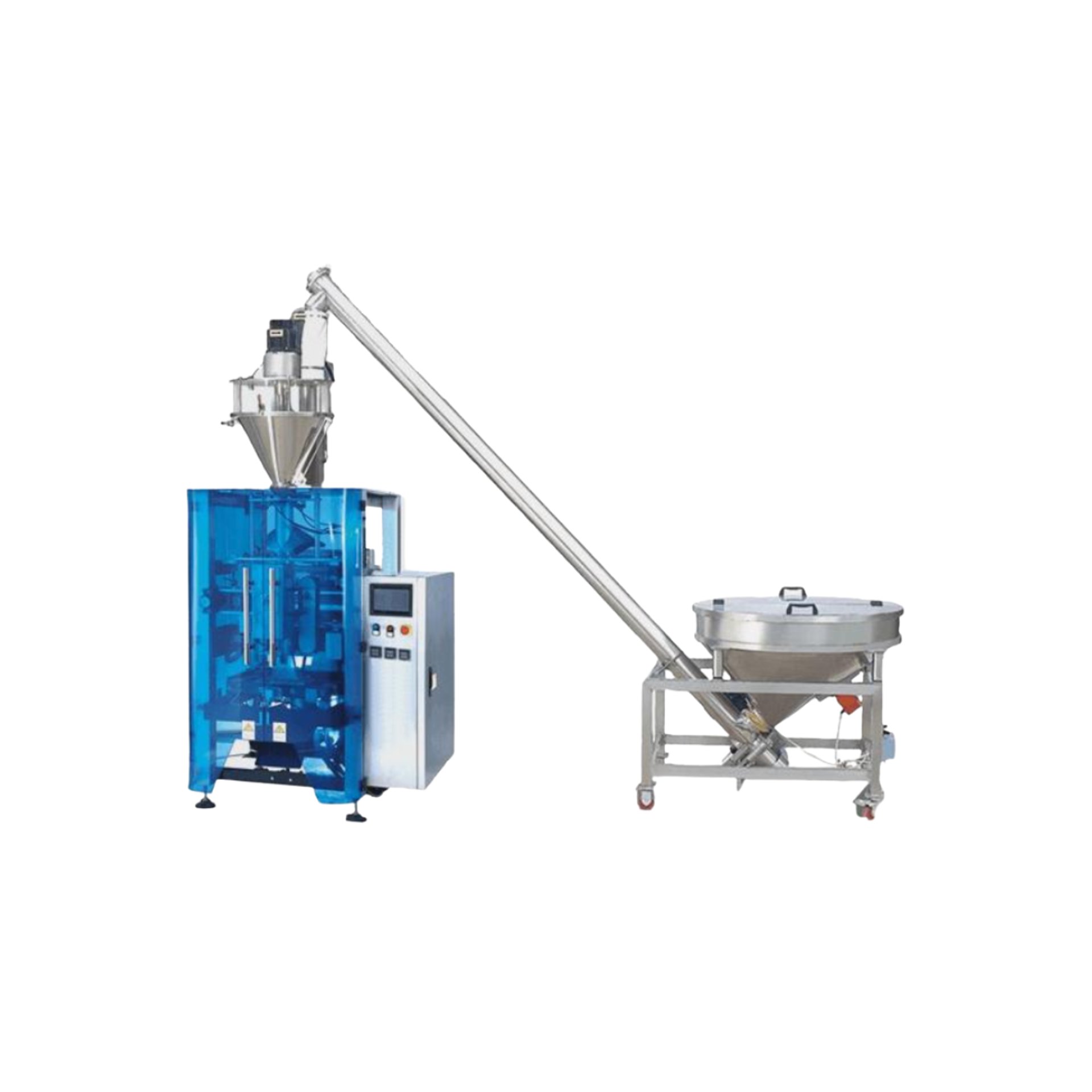

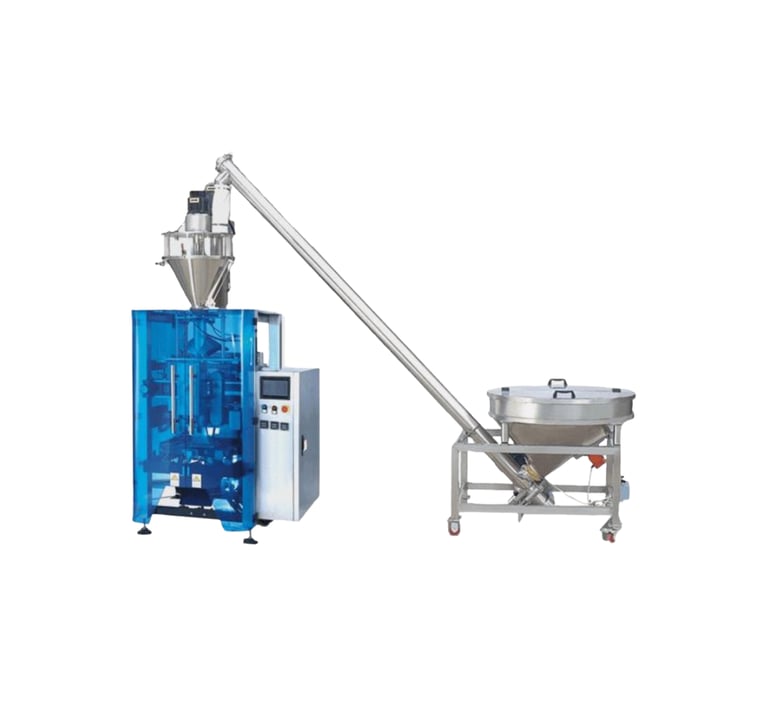

FFS / VFFS Packing Machine with Servo Auger Filler

The FFS / VFFS Packing Machine with Servo Auger Filler is a high-performance solution designed for accurate and efficient packaging of powders and fine granular products. Combining a vertical form-fill-seal system with a servo-driven auger filler, it ensures precise dosing, minimal product wastage, and consistent pouch quality.

Engineered for continuous production, this machine is ideal for industries requiring hygienic, high-speed, and reliable powder packaging.

Key Features

• Servo Auger Filling System: High-precision dosing with excellent repeatability

• Automatic FFS/VFFS Operation: Forms, fills, and seals pouches in one continuous process

• High-Speed Performance: Suitable for medium to high production volumes

• PLC with Touch Screen HMI: Easy control and parameter adjustments

• Consistent Sealing Quality: Strong and uniform pouch sealing

• Low Wastage: Optimized filling mechanism for material efficiency

• Hygienic SS Construction: Ideal for food and pharmaceutical applications

Applications

• Milk, water, and beverages

• Edible oils and liquid food products

• Sauces, ketchup, and syrups

• Shampoo and liquid detergents

• Chemical and pharmaceutical liquids

Technical Specifications

• Machine Type: FFS / VFFS with Servo Auger Filler

• Filling Range: 10 g to 1 kg (depending on auger size and product)

• Packaging Speed: 20 – 60 pouches/min (product dependent)

• Power Supply: 220V / 380V, 50 Hz

• Control System: PLC with Touch Screen HMI

• Filling Accuracy: ±1% (based on powder characteristics)

• Bag Type: Center Seal / Pillow Pouch / Gusseted Bags

• Film Type: Laminated films (PET/PE, BOPP, etc.)

• Material of Construction: SS304 (contact parts)
