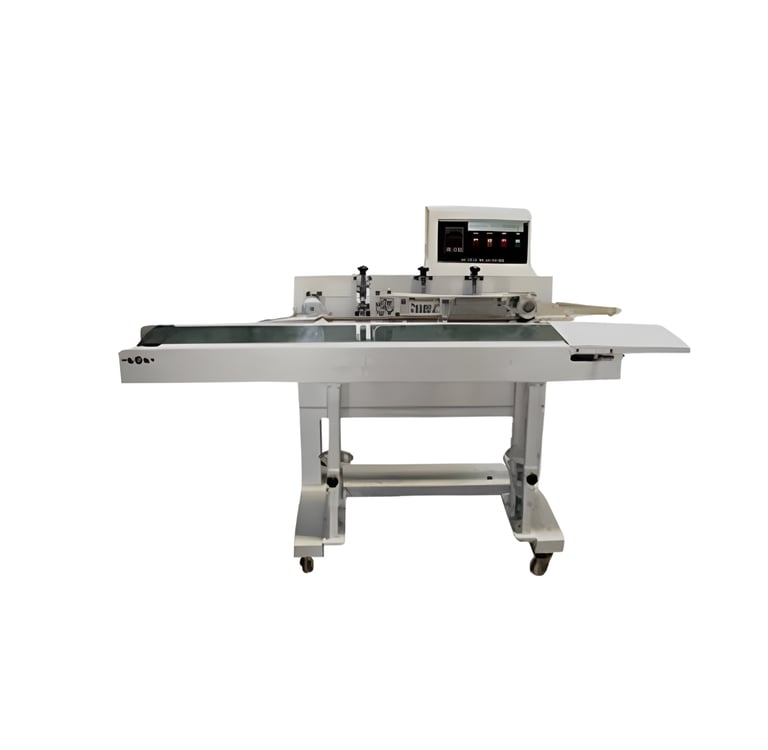

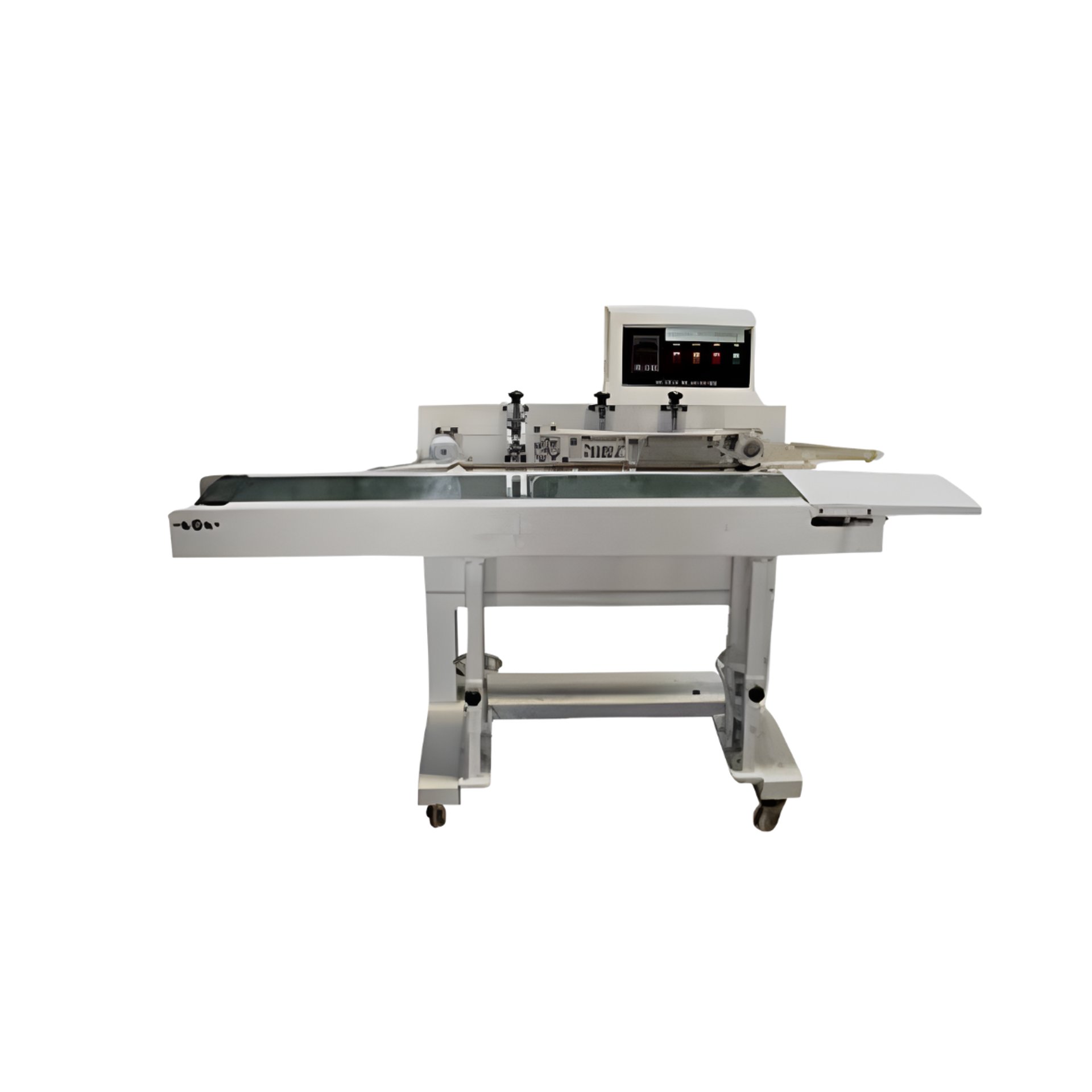

Heavy Duty Horizontal Continuous Band Sealing Machine (BPACS 900H)

The Heavy Duty Horizontal Continuous Band Sealing Machine (BPACS 900H) is a high-capacity sealing solution engineered for large, heavy, and thick laminated pouches. Designed for industrial environments, this machine ensures strong, consistent, and high-quality seals even under demanding conditions.

Its horizontal configuration makes it suitable for products that require stable placement during sealing, ensuring accuracy and efficiency in continuous packaging operations.

Key Features

• Heavy-duty construction for industrial use

• Suitable for large and high-weight pouches

• Continuous horizontal sealing for stable operation

• High-power cartridge heaters for thick materials

• Digital temperature control for precise sealing

• Wide conveyor belt with high load capacity

• Adjustable sealing height for flexibility

Applications

• Bulk Food Packaging (Grains, Flour, Pulses)

• Chemical & Fertilizer Bags

• Industrial Products

• Large Laminated Pouches

• Heavy-Duty Packaging Applications

Technical Specifications

Model - BPACS 900H

• Sealing Speed - 10 m/min

• Heaters - Heavy Duty Cartridge Heater (500 W × 2)

• Sealing Width - 3 mm to 12 mm (15 mm optional)

• Sealing Compatibility - Suitable for all heat-sealable laminated & non-laminated materials

• Max Laminate Thickness - Up to 250 microns

• Bag Size - 100 mm to 500 mm (H) / 50 mm to 500 mm (W)

• Temperature Range - 0°C to 300°C

• Temperature Control - Digital Controller

• Conveyor Belt Width - 450 mm

• Conveyor Load Capacity - Up to 200 kg

• Sealing Head Height - Adjustable up to 150 mm

• Machine Dimensions - 1750 mm × 730 mm × 1430 mm (L × W × H)

• Machine Weight - Approx. 80 kg to 150 kg
