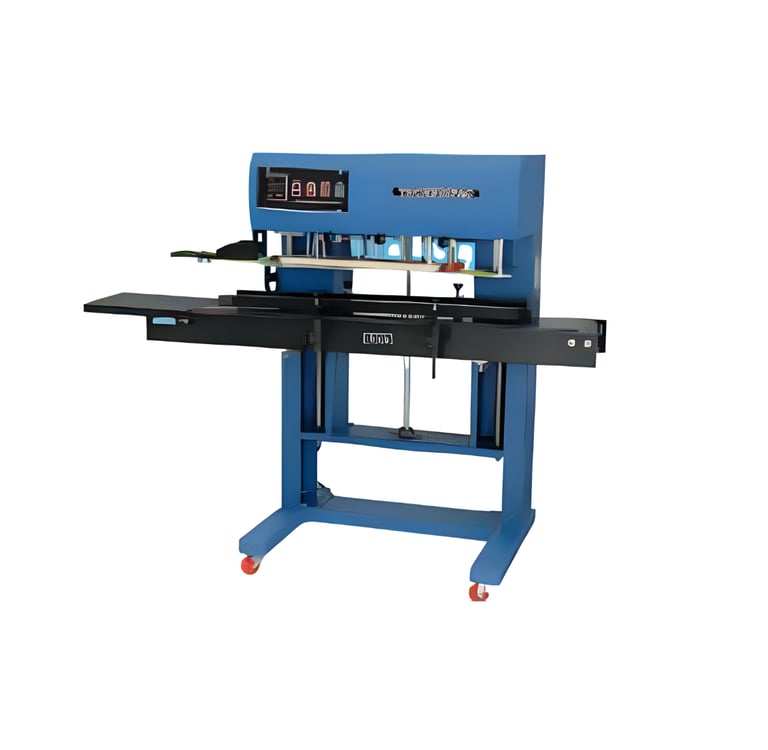

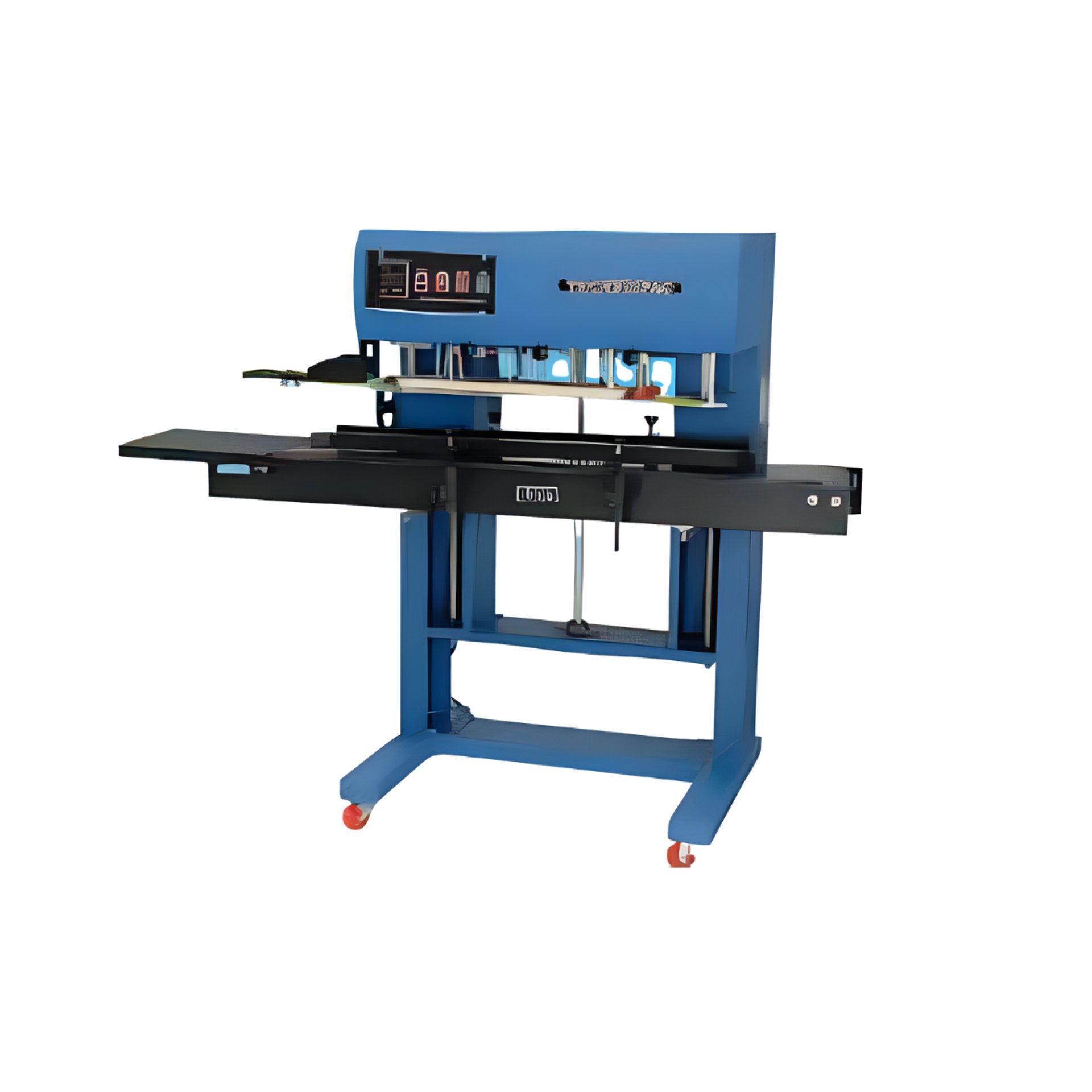

Heavy Duty Vertical Continuous Band Sealing Machine (BPA-CBS 910V)

The Heavy Duty Vertical Continuous Band Sealing Machine (BPA-CBS 910V) is a robust industrial-grade solution designed for sealing large and heavy pouches. Built for high performance, this machine ensures strong, durable seals even for thick laminated materials and bulk packaging applications.

With advanced heating and control systems, it is ideal for industries requiring high load handling, consistent sealing, and continuous operation.

Key Features

• Heavy-duty construction for industrial applications

• Suitable for large and high-weight pouches

• Continuous vertical sealing for bulk packaging

• High-power heating system for thick laminates

• Digital PID temperature controller for precision

• Adjustable conveyor height and strong load capacity

• Durable and long-lasting performance

Applications

• Bulk Food Packaging (Grains, Pulses, Flour)

• Chemical & Fertilizer Bags

• Industrial Products

• Large Capacity Pouches

• Heavy Laminated Packaging

Technical Specifications

Model - BPA-CBS 910V

• Sealing Speed - 10 m/min

• Capacity - Up to 5 kg

• Heaters - 2 × 500 W Heavy-Duty Cartridge Heaters

• Power Requirement - 415V Three Phase / 220V Single Phase, 50 Hz

• Temperature Range - 0°C to 400°C

• Temperature Control - Digital PID Controller

• Sealing Width - 3 mm to 12 mm

• Sealing Compatibility - Suitable for all heat-sealable laminates

• Bag Size - 100 mm to 500 mm (Height & Width adjustable)

• Max Laminate Thickness - Up to 250 microns

• Conveyor Belt Width - 200 mm

• Conveyor Height - Adjustable up to 500 mm

• Conveyor Load Capacity - Up to 25 kg

• Machine Dimensions - 1750 mm × 730 mm × 1430 mm (L × W × H)

• Net Weight - Approx. 180 kg
