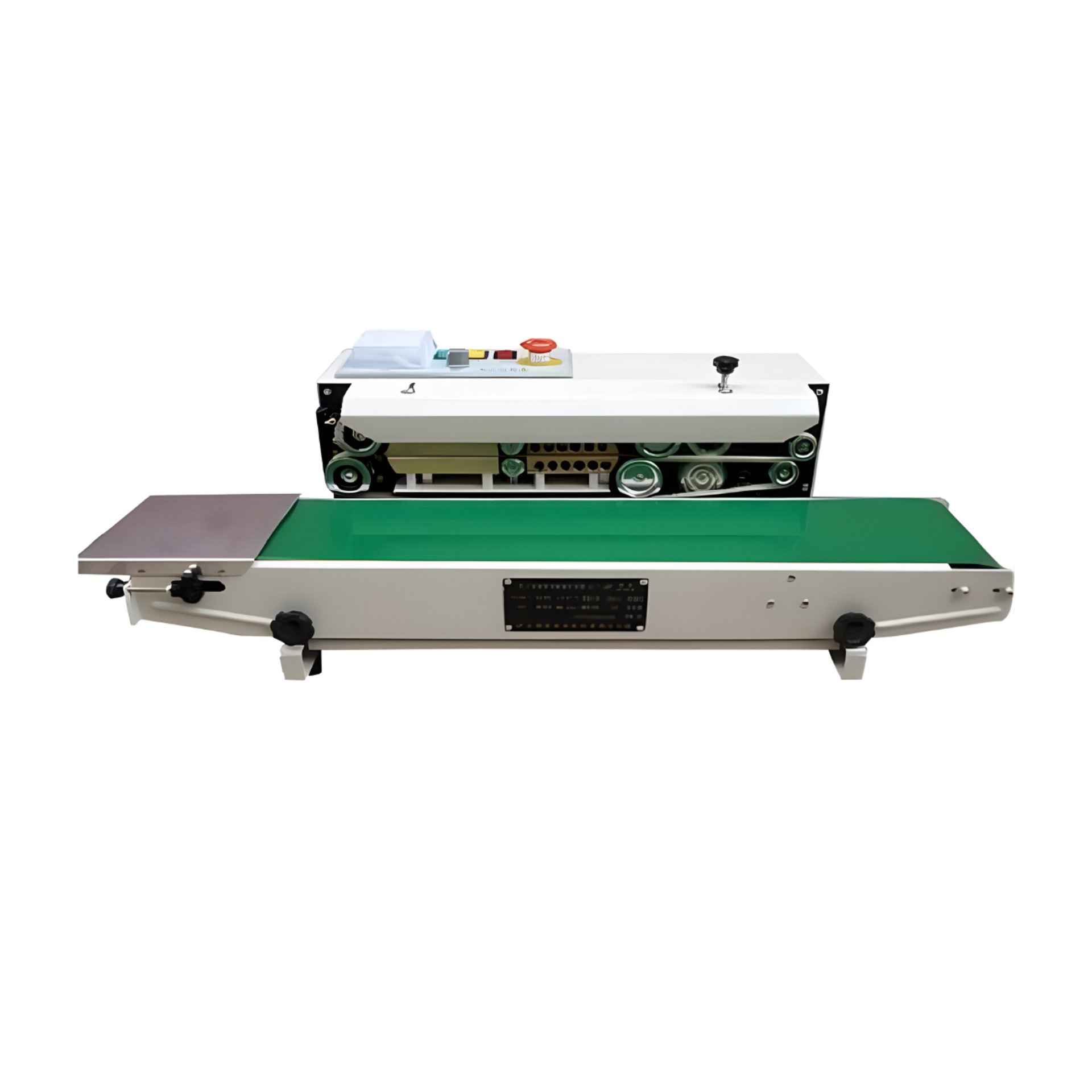

Horizontal Continuous Band Sealer (BPACS 900H)

The Horizontal Continuous Band Sealer (BPACS 900H) is a reliable and efficient sealing solution designed for continuous sealing of filled pouches and bags. This machine is widely used for sealing laminated, polyethylene, and plastic pouches, ensuring strong and uniform seals.

With a conveyor-based system, it allows smooth and continuous operation, making it ideal for high-volume packaging lines in food, pharmaceutical, and industrial sectors.

Key Features

• Continuous band sealing for high productivity

• Adjustable temperature control for different materials

• Conveyor system for smooth and uniform sealing

• Compact and durable industrial design

• Suitable for a wide range of pouch materials

• Easy operation with minimal maintenance

• Consistent and strong sealing quality

Applications

• Food Packaging (Snacks, Grains, Spices)

• Pharmaceutical Products

• Chemical & Industrial Products

• Retail & Bulk Packaging

• Laminated and Plastic Pouches

Technical Specifications

Model - BPACS 900L

• Voltage - 220V / 50 Hz

• Power - 650 W

• Sealing Speed - 0 to 12 m/min (adjustable up to ~16 m/min)

• Sealing Width - 8 mm to 10 mm

• Temperature Range - 0°C to 300°C

• Distance (Seal Center to Conveyor) - 10 mm to 40 mm

• Conveyor Size - 840 mm × 153 mm

• Film Thickness - Up to 0.08 mm

• Single Conveyor Load - 1 kg

• Overall Conveyor Load - 3 kg

• Machine Dimensions - 840 mm × 380 mm × 550 mm (L × W × H)

• Net Weight - Approx. 32 kg
