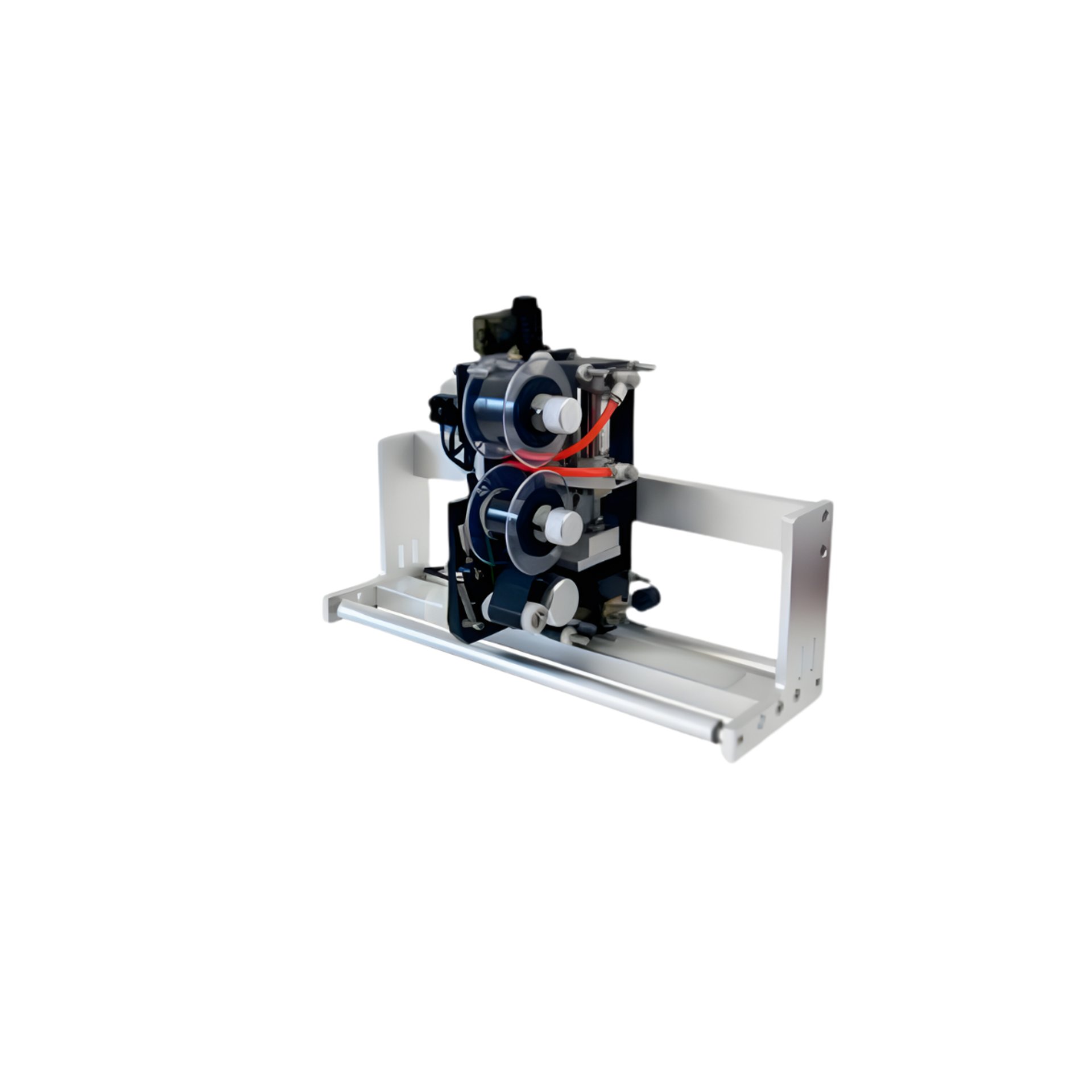

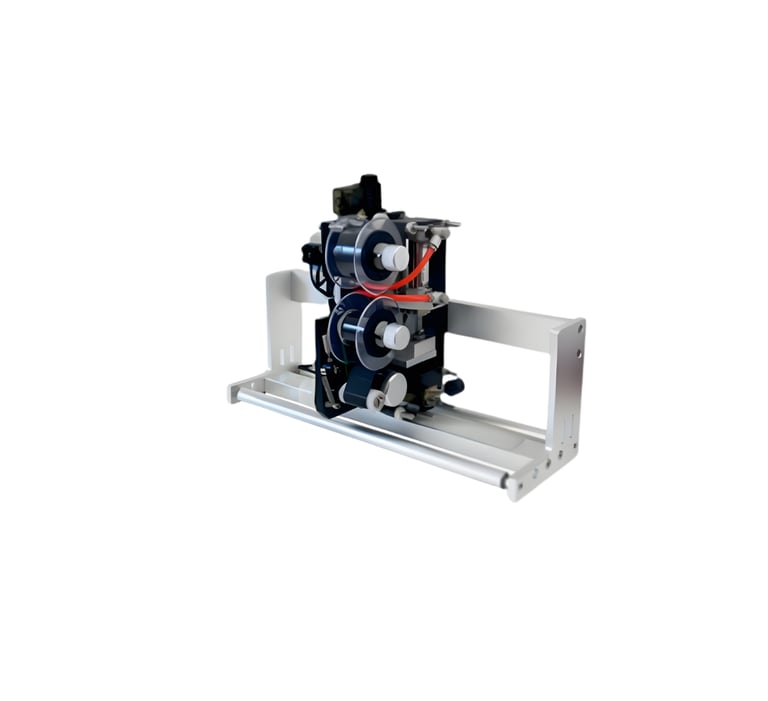

Motorized Ribbon Printer (Online Coding Printer)

The Motorized Rubber Printer is a pneumatic-driven, high-speed coding solution designed for continuous printing of batch numbers, dates, and product information on packaging films and labels. Utilizing hot foil ribbon technology, it delivers clear, durable, and fast-drying prints with excellent consistency.

Engineered for seamless integration with automated packaging systems, this machine is ideal for high-volume production environments requiring reliable inline coding.

Key Features

• Pneumatic Drive System: Ensures stable and consistent high-speed operation

• Inline Integration: Suitable for automatic packaging machines

• Clear & Durable Printing: High-quality, smudge-free impressions

• Hot Foil Technology: Clean, solvent-free printing process

• Multi-Line Printing: Supports detailed batch and date coding

• Compact Design: Lightweight and easy to install

• Low Maintenance: Reliable performance with minimal servicing

Applications

• Flexible packaging films and pouches

• Food and FMCG packaging lines

• Pharmaceutical and cosmetic products

• VFFS and HFFS machine integration

• Labels and laminated packaging materials

Technical Specifications

• Model: PIC-501

• Power Supply: AC 220V / 50 Hz

• Drive Type: Pneumatic

• Printing Speed: 0 – 200 prints/min

• Print Area: Up to 4 lines (maximum 15 characters per line)

• Font Sizes: 8.5 PT, 9.5 PT, 10.5 PT

• Printing Media: Hot foil ribbon (available in various colors)

• Ribbon Width Compatibility: 25 mm, 30 mm, 35 mm

• Printing Method: Brass type characters

• Machine Weight: Approx. 7 kg (without stand)
