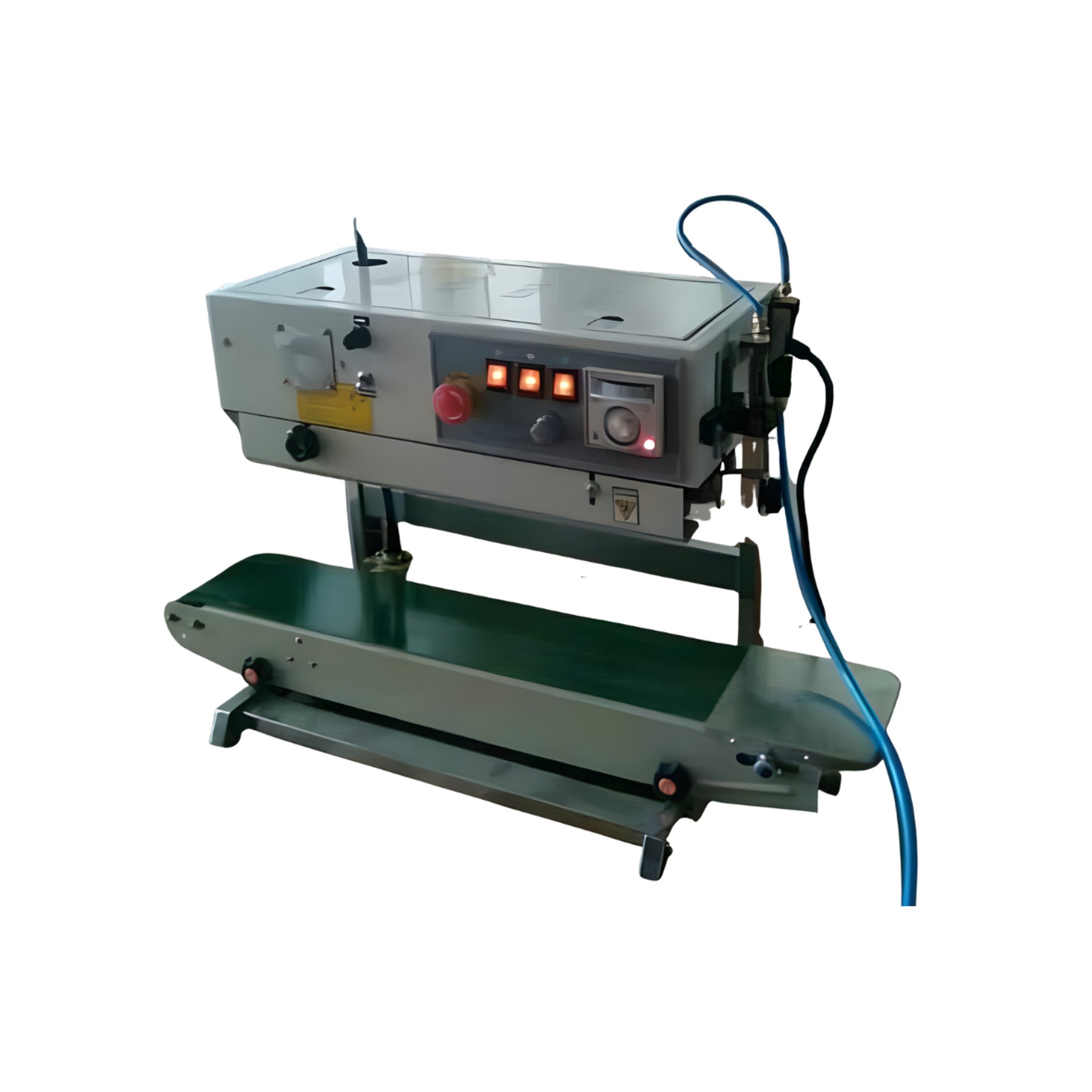

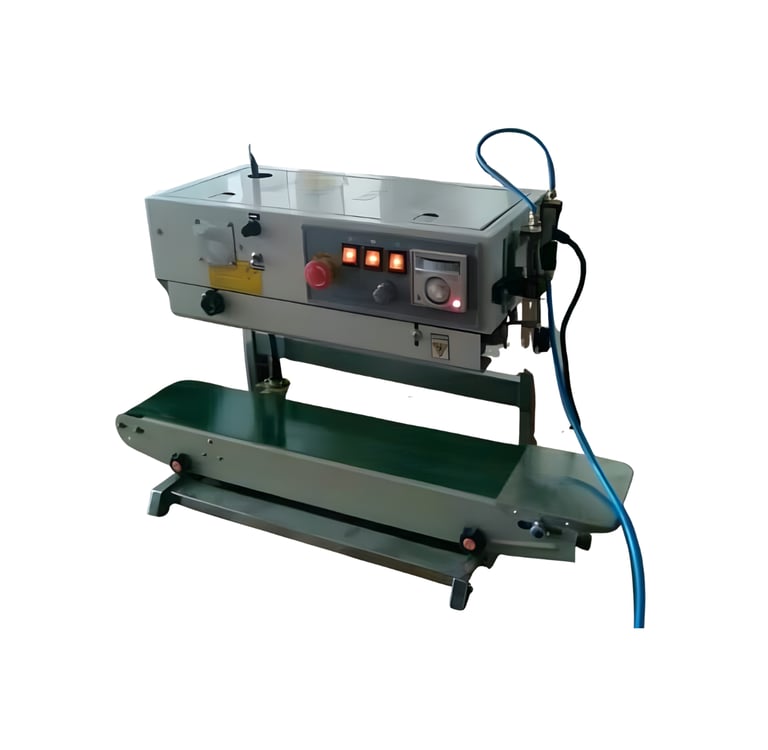

Nitrogen Flushing Vertical Sealer (BPA 900NF)

The Nitrogen Flushing Vertical Sealer (BPA 900NF) is an advanced sealing solution designed for extended shelf-life packaging. This machine integrates nitrogen gas flushing with vertical band sealing, helping to preserve freshness and prevent oxidation in packaged products.

It is ideal for industries such as food, pharmaceuticals, and chemicals, where product protection and quality retention are critical.

Key Features

• Integrated nitrogen flushing system for product preservation

• Vertical sealing design suitable for filled pouches

• Continuous band sealing for high productivity

• Adjustable temperature and sealing speed

• Conveyor system for smooth operation

• Strong and uniform sealing quality

• Suitable for laminated and plastic pouches

Applications

• Snacks & Chips Packaging

• Dry Fruits & Nuts

• Coffee & Tea

• Pharmaceutical Products

• Chemical & Industrial Products

Technical Specifications

Model - BPA 900NF

• Voltage - 220V / 50 Hz

• Power - 650 W

• Sealing Speed - 0 to 12 m/min (adjustable up to ~16 m/min)

• Sealing Width - 8 mm to 10 mm

• Temperature Range - 0°C to 300°C

• Distance (Seal Center to Conveyor) - 15 mm to 270 mm

• Conveyor Size - 840 mm × 153 mm

• Film Thickness - Up to 0.08 mm

• Single Conveyor Load - 1 kg

• Overall Conveyor Load - 3 kg

• Machine Dimensions - 840 mm × 380 mm × 550 mm (L × W × H)

• Net Weight - Approx. 37 kg
