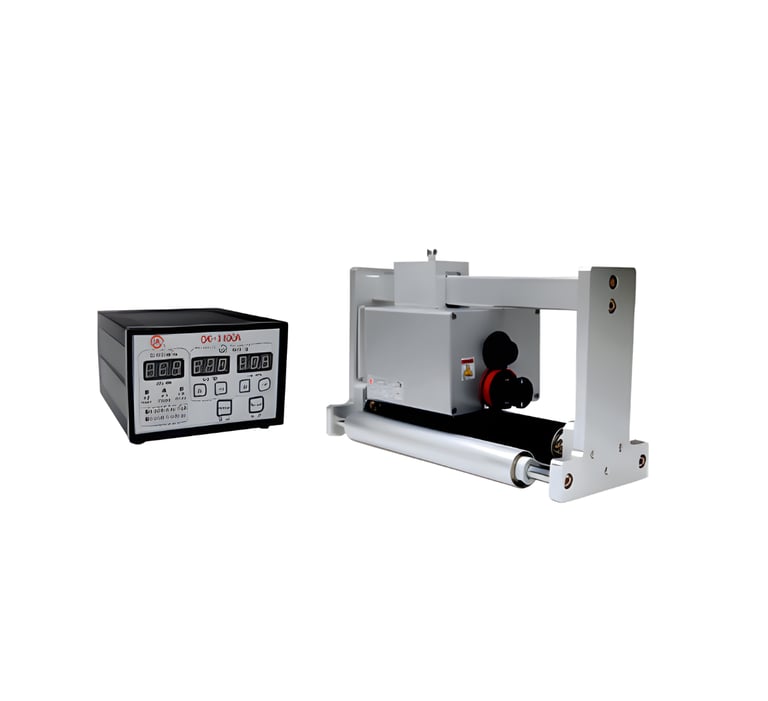

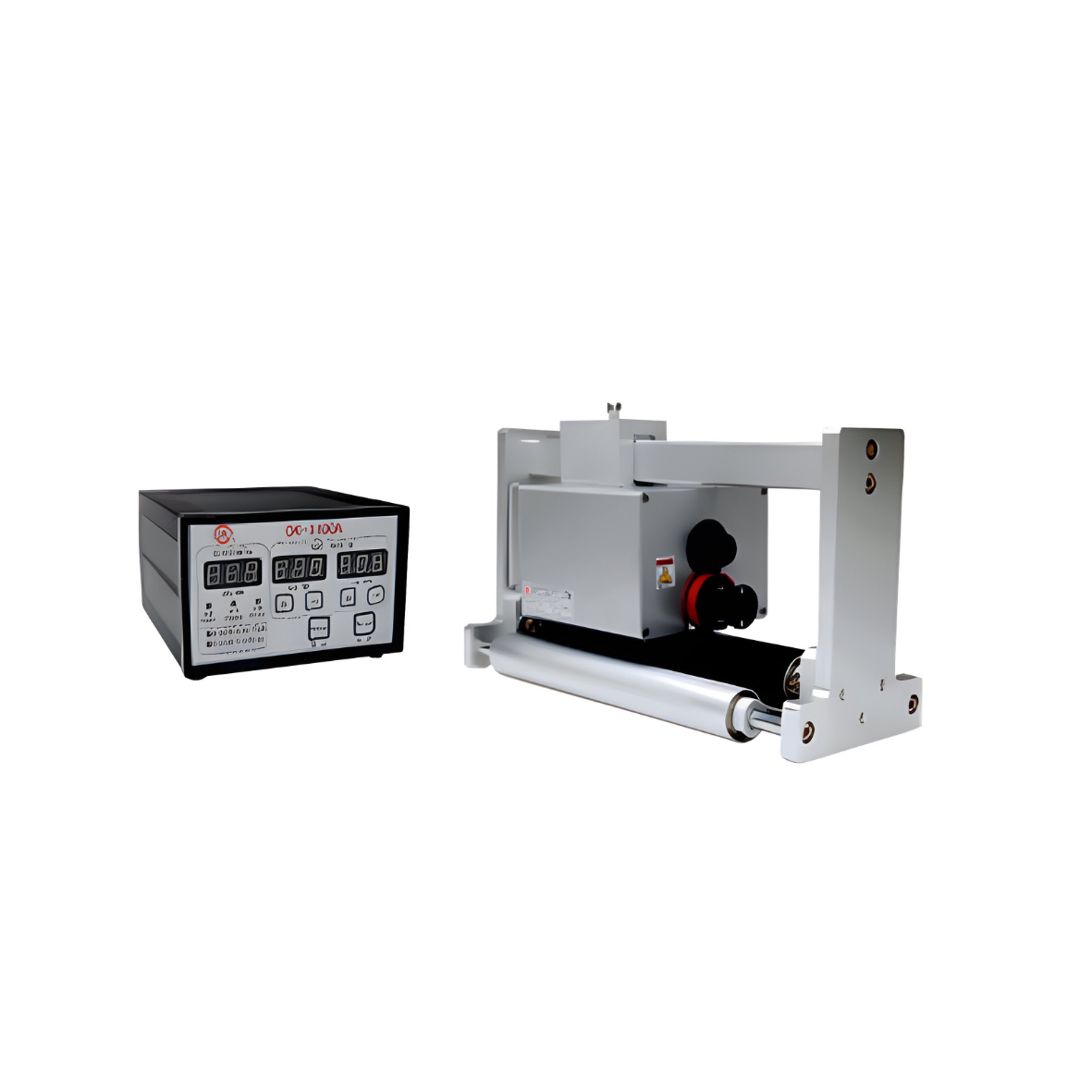

Online Hot Ink Coder (VFFS & HFFS)

The Online Hot Ink Coder is a high-speed batch and date printing solution designed for seamless integration with vertical (VFFS) and horizontal (HFFS) form-fill-seal machines. It ensures precise, clear, and consistent coding directly on packaging films during the production process.

With fast-drying, solvent-free printing and accurate positioning, this system is ideal for continuous packaging lines requiring reliable and high-quality marking.

Key Features

• Inline Integration: Designed for VFFS & HFFS packaging machines

• High-Speed Printing: Supports continuous production environments

• Precise Print Positioning: Ensures accurate and consistent coding

• Instant Dry Technology: Smudge-free and ready for immediate handling

• Multi-Line Printing: Suitable for batch, date, and code printing

• Solid Ink Technology: No liquid ink required for clean operation

• Low Maintenance: Reliable performance with minimal upkeep

Applications

• VFFS pouch packaging (snacks, powders, granules)

• HFFS flow wrap packaging

• Food and FMCG products

• Pharmaceutical packaging

• Flexible packaging films and laminates

Technical Specifications

• Model: PIC-980

• Machine Dimensions: 440 × 345 × 300 mm

• Power Consumption: 180 W

• Power Supply: AC 220V / 50 Hz (Optional: 110V / 60 Hz)

• Printing Speed: Up to 300 prints/min

• Applicable Film Size Range:

  • Length: 50 – 500 mm

  • Width: 30 – 190 mm

• Maximum Printing Lines:

  • T-Type (10.5PT): Up to 11 lines (max 10 characters per line)

  • R-Type (10.5PT): Up to 8 lines (max 8 characters per line)

• Printing Media: Hot ink roller (various colors available)

• Ink Requirement: No liquid ink required
