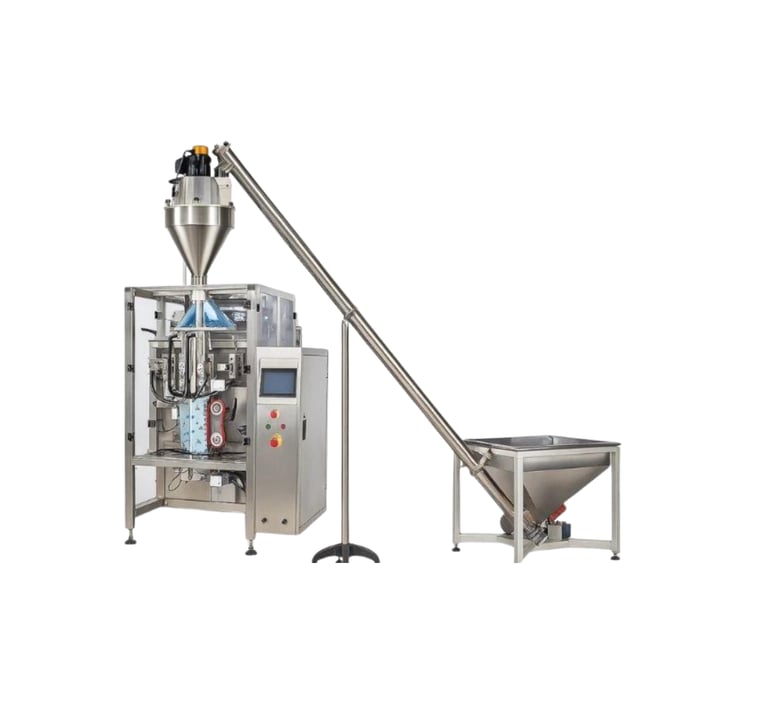

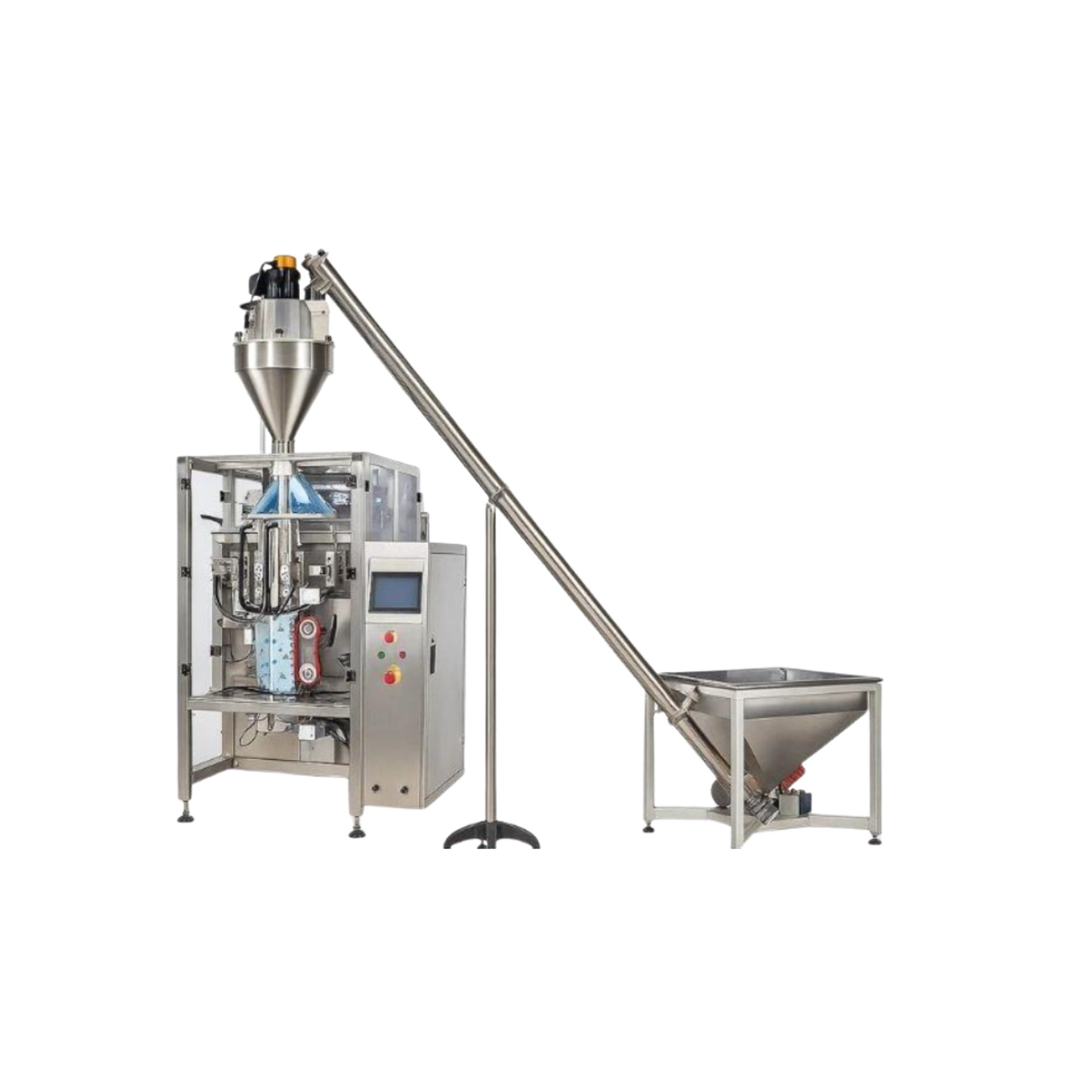

Pharmaceutical Automatic Powder Sachet Packing Machine with Servo Auger Filler

The Pharmaceutical Automatic Powder Sachet Packing Machine with Servo Auger Filler is a high-precision, GMP-compliant solution engineered for accurate dosing and hygienic packaging of pharmaceutical powders. Equipped with a servo-driven auger system, it ensures consistent fill weights, minimal wastage, and excellent repeatability—critical for regulated pharma environments.

Designed for high-speed production, this machine integrates forming, filling, sealing, and cutting into a single automated process.

Key Features

• Servo auger filler for precise volumetric dosing

• GMP-compliant stainless steel construction (SS 304 / 316)

• PLC + HMI touch screen control system

• High-speed multi-lane configuration (optional)

• Anti-drip and dust-controlled filling mechanism

• Consistent heat sealing (3-side / 4-side seal)

• Easy changeover and cleaning for different products

• Integration-ready for batch coding and printing

Applications

• Pharmaceutical powder sachets

• ORS and electrolyte powders

• Nutraceutical and protein supplements

• Ayurvedic and herbal formulations

• Fine and hygroscopic powders

Technical Specifications

• Application - Pharmaceutical powders, nutraceuticals, herbal powders

• Filling System - Servo Auger Filler

• Filling Range (g) - 1 – 50 (customizable)

• Production Speed (sachets/min) - 40 – 120 (depending on lanes & product)

• Filling Accuracy - ±1% or better

• Sealing Type - Heat seal (3-side / 4-side)

• Control System - PLC with HMI Touch Screen

• Material Contact Parts - SS 304 / SS 316 (GMP compliant)

• Power Supply - 220V / 380V AC, 50 Hz

• Optional Features - Multi-lane system, nitrogen flushing, dust extraction, online printing
