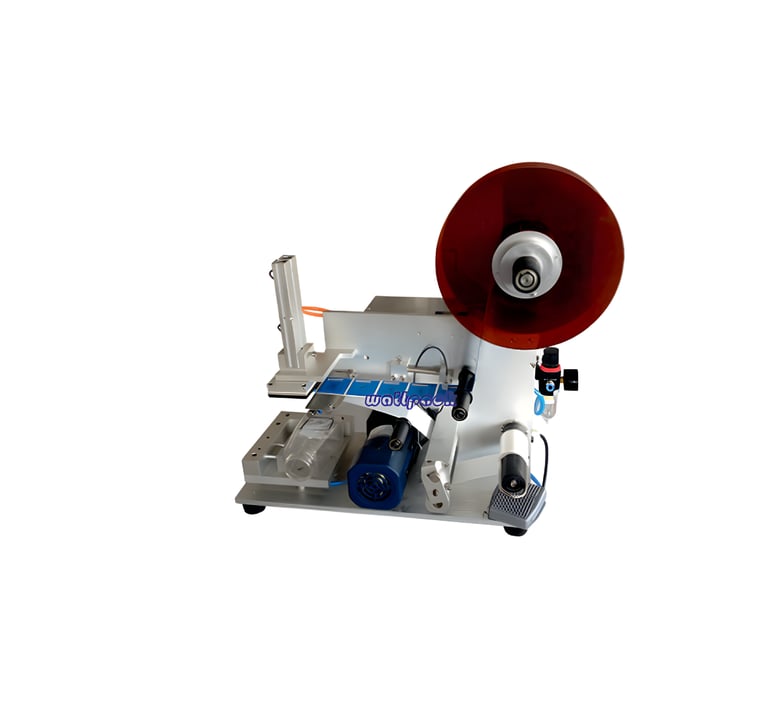

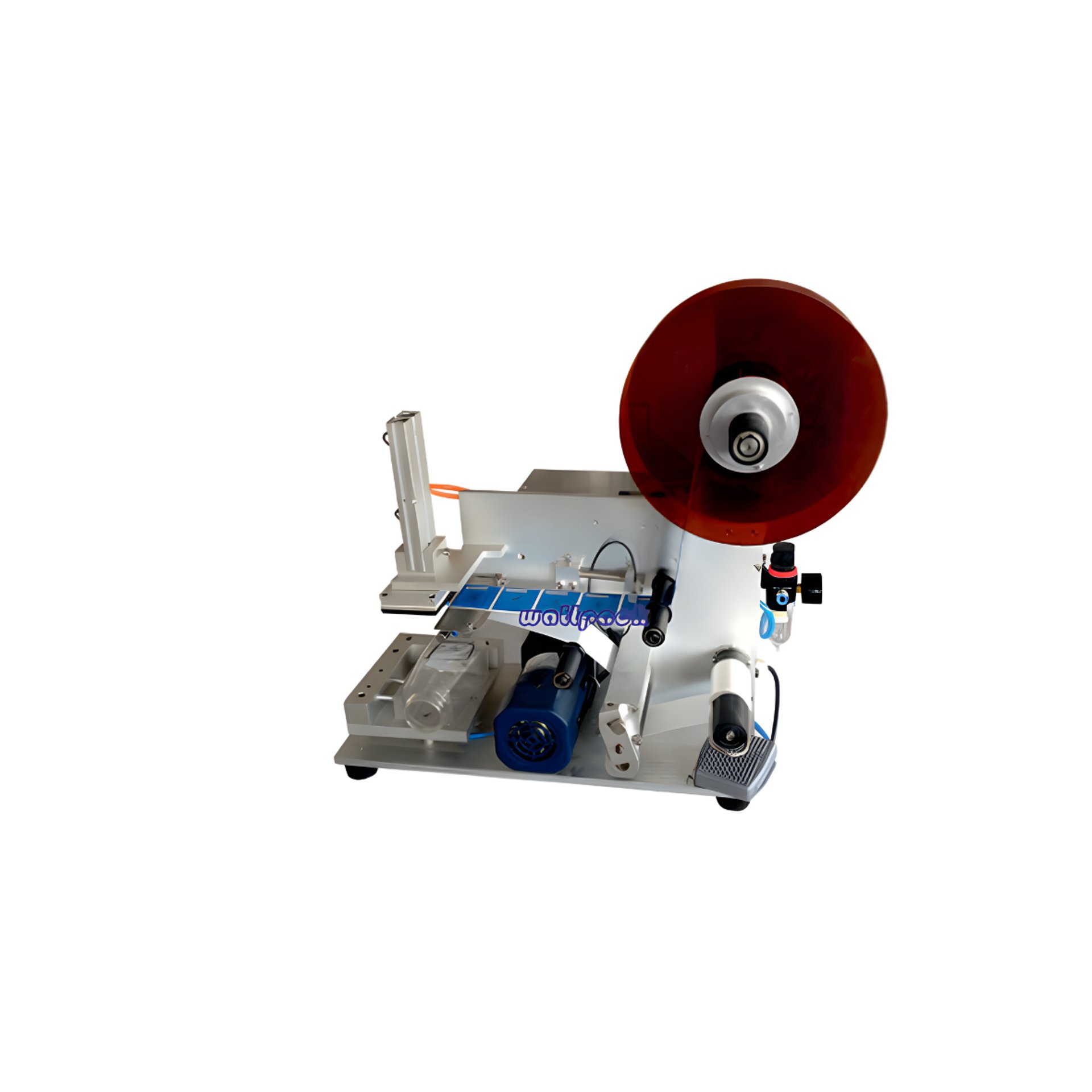

Semi Auto Flat Labelling Machine

Our Semi-Automatic Flat Labeling Machine (MT-60) is designed to deliver precise and efficient labeling for flat, square, and rectangular products. Using a motorized labeling system combined with high-accuracy sensors, it ensures perfectly aligned, bubble-free labels on a wide range of surfaces.

Ideal for medium-scale production, this machine enhances labeling consistency, improves product presentation, and increases operational efficiency.

Key Features

• Flat Surface Labeling: Perfect for pouches, boxes, lids, cartons, and flat bottles

• High Precision Sensors: Ensures accurate label positioning every time

• Motorized Application System: Smooth and consistent label dispensing

• Adjustable Settings: Flexible for different product sizes and label dimensions

• User-Friendly Operation: Simple controls for quick setup and use

• Stable Performance: Reliable for continuous production

• Durable Build: Designed for long-term industrial usage

Applications

• Pouches and sachets

• Cartons and boxes

• Cosmetic and personal care packaging

• Food containers and trays

• Pharmaceutical packaging

• Flat bottles and lids

Technical Specifications

• Model: MT-60

• Power Supply: AC 220V / 50 Hz (Optional: 110V / 60 Hz)

• Power Consumption: 120 W

• Labelling Speed: 25 – 50 pcs/min (depending on product and label size)

• Labelling Accuracy: ±0.5 mm

• Product Type: Flat, square, or rectangular containers

• Maximum Label Size:

  • Width: Up to 150 mm

  • Length: Up to 230 mm (extendable up to 315 mm depending on model)

• Product Size Compatibility: Customizable guides for various flat product dimensions

• Label Roll Requirement:

  • Inner Diameter: ≥ 75 mm

  • Outer Diameter: ≤ 250 mm

• Machine Dimensions: 650 × 450 × 450 mm

• Machine Weight: Approx. 25 kg
