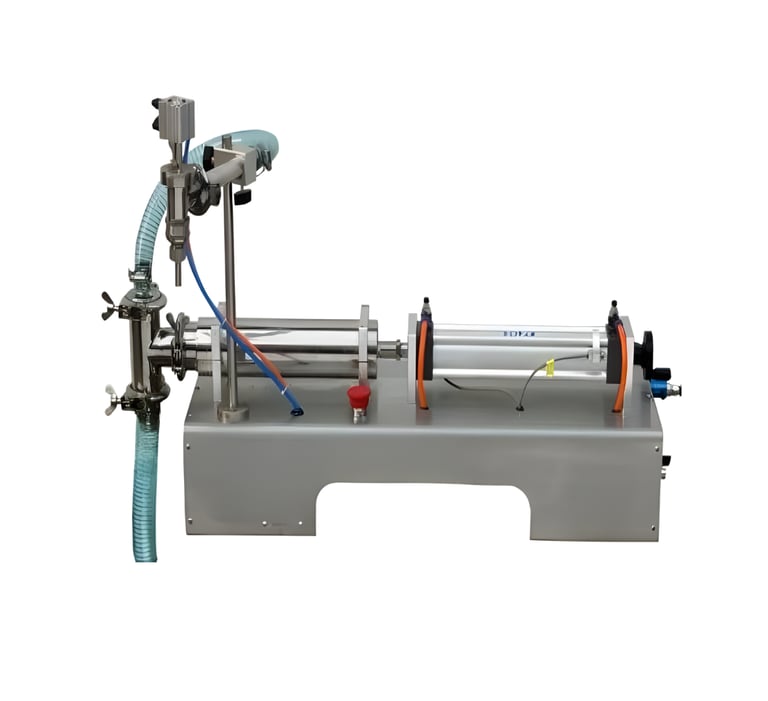

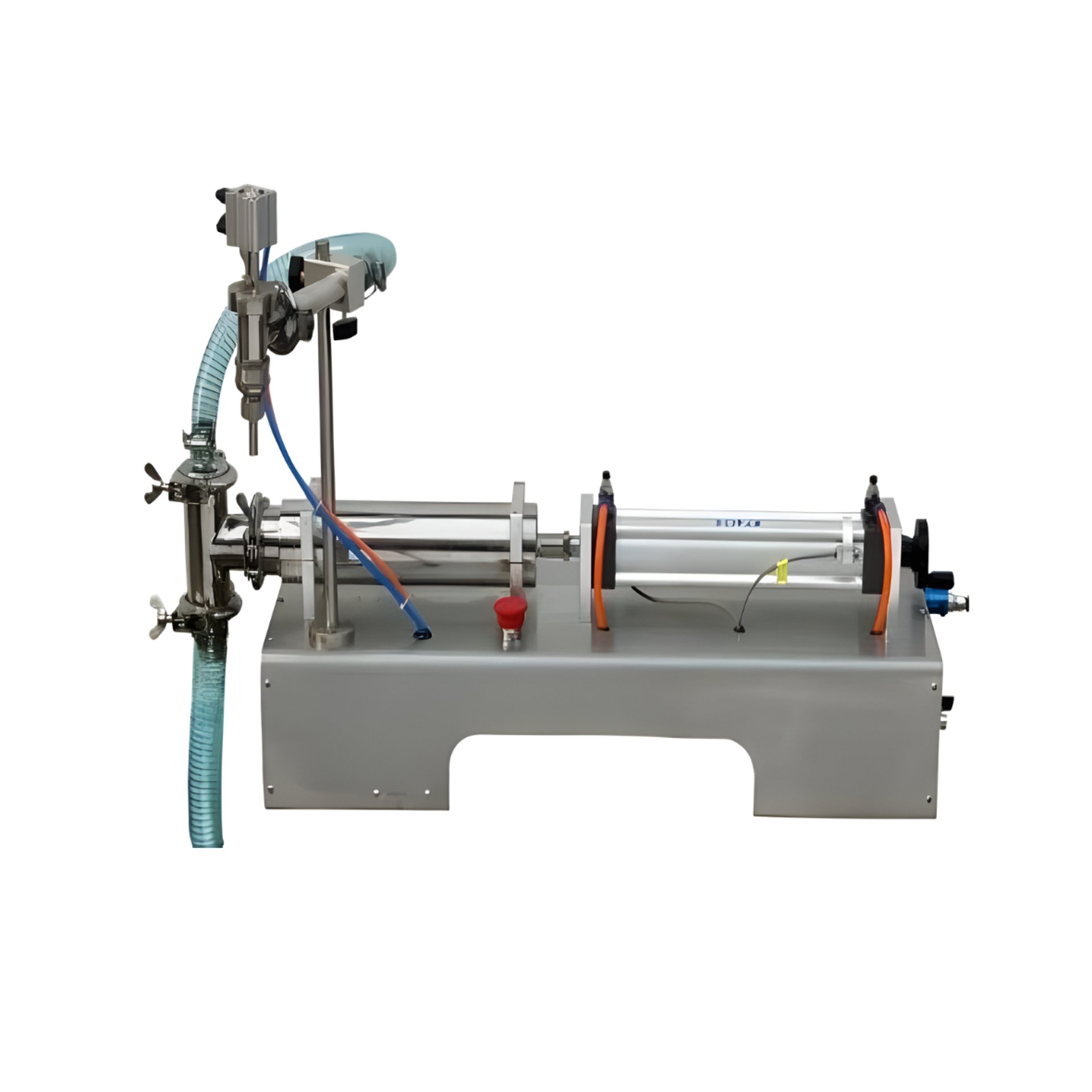

Single Head Liquid Filling Machine(BPALF-1000)

The BPALF-1000 Single Head Liquid Filling Machine is a precision-engineered solution designed for accurate and efficient filling of liquids in various industries. Utilizing pneumatic control, it ensures consistent filling volumes with minimal wastage and high repeatability.

This machine is ideal for small to medium-scale production setups, offering flexibility for different liquid types such as oils, chemicals, beverages, and cosmetics.

Key Features

• Single nozzle design for precise filling

• Pneumatic operation for consistent performance

• Adjustable filling volume for flexibility

• High accuracy with minimal error margin

• Suitable for various liquid viscosities

• Compact and durable stainless steel construction

• Easy to operate and maintain

Applications

• Edible oil and beverage filling

• Chemical and lubricant filling

• Cosmetic and personal care products

• Pharmaceutical liquid filling

• Small to medium production units

Technical Specifications

Model - BPALF-1000

• Voltage (V/Hz) - 220 / 50

• Power (W) - 20

• Gas Pressure (MPa) - 0.4 – 0.6

• Filling Range (ml) - 100 – 1000

• Filling Capacity (times/min) - 10 – 18

• Filling Accuracy - ≤ 1%

• External Dimensions (L x W x H) cm - 100 × 50 × 105

• Net Weight (Kg) - 40
