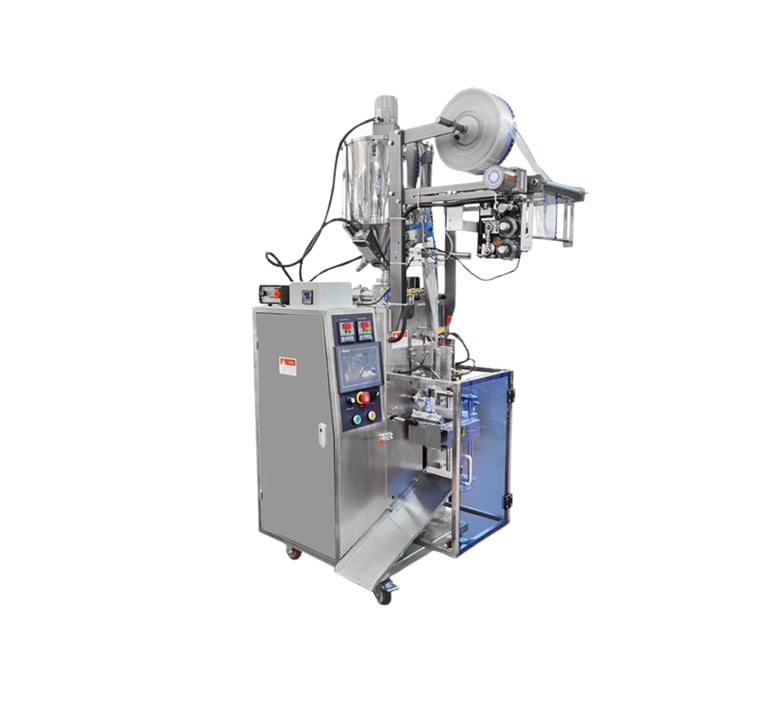

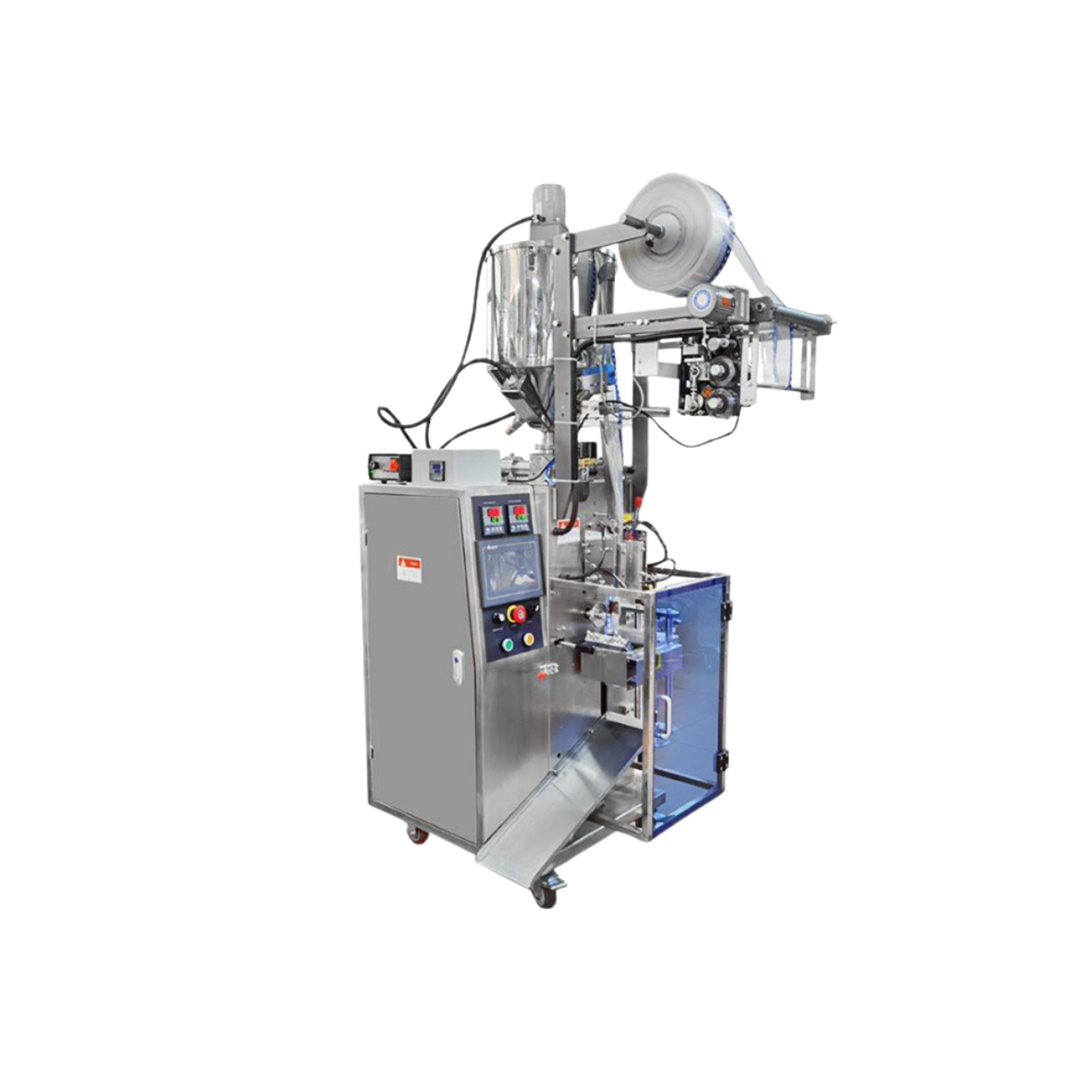

Small Automatic Liquid Packing Machine

The VFFS Small Automatic Liquid Packing Machine is designed for precise and hygienic packaging of liquids and semi-liquids in small pouches. Equipped with a piston or pump-based filling system integrated with a vertical form-fill-seal mechanism, it ensures accurate dosing, leak-proof sealing, and consistent pouch quality.

Its compact design and efficient operation make it ideal for small to medium-scale production units handling liquid products.

Key Features

• Automatic VFFS Operation: Forms, fills, and seals pouches in one continuous process

• Liquid Filling System: Piston/pump-based system for accurate dosing

• Leak-Proof Sealing: Ensures secure and hygienic packaging

• Compact Design: Space-saving and easy to install

• PLC Control with HMI: User-friendly interface for operation and control

• Consistent Output: Uniform pouch size and sealing quality

• Hygienic Construction: Stainless steel body for food-grade applications

Applications

• Milk, water, and beverages

• Edible oils and liquid food products

• Sauces, ketchup, and syrups

• Shampoo and liquid detergents

• Chemical and pharmaceutical liquids

Technical Specifications

• Machine Type: VFFS Liquid Packing Machine

• Filling Range: 5 ml to 200 ml (depending on configuration)

• Packaging Speed: 20 – 50 pouches/min (product dependent)

• Power Supply: 220V / 50 Hz

• Control System: PLC with Touch Screen HMI

• Filling Accuracy: ±1% (based on liquid viscosity)

• Bag Type: Center Seal / Pillow Pouch / 3-Side Seal

• Film Type: Laminated films (PET/PE, BOPP, etc.)

• Material of Construction: SS304 (contact parts)
