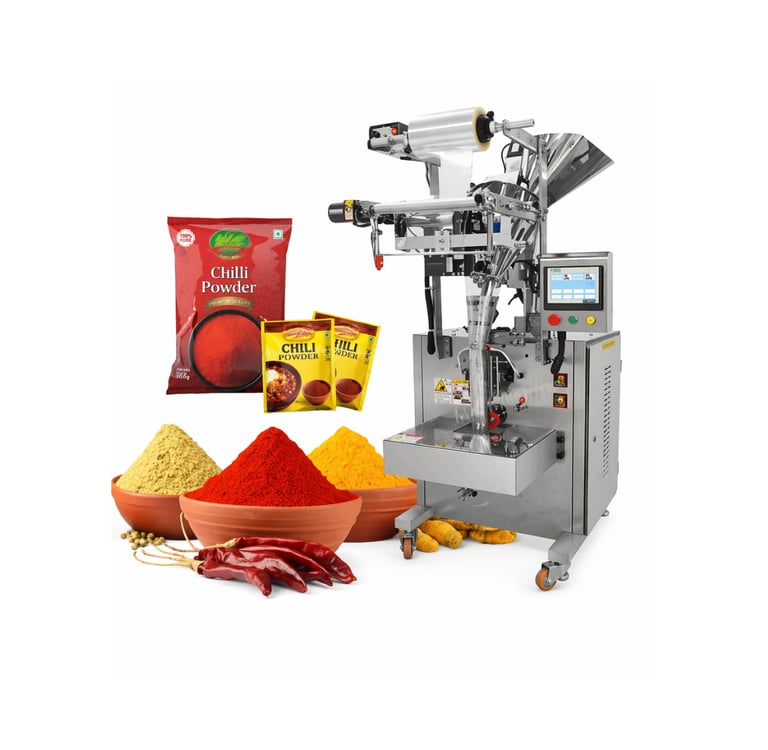

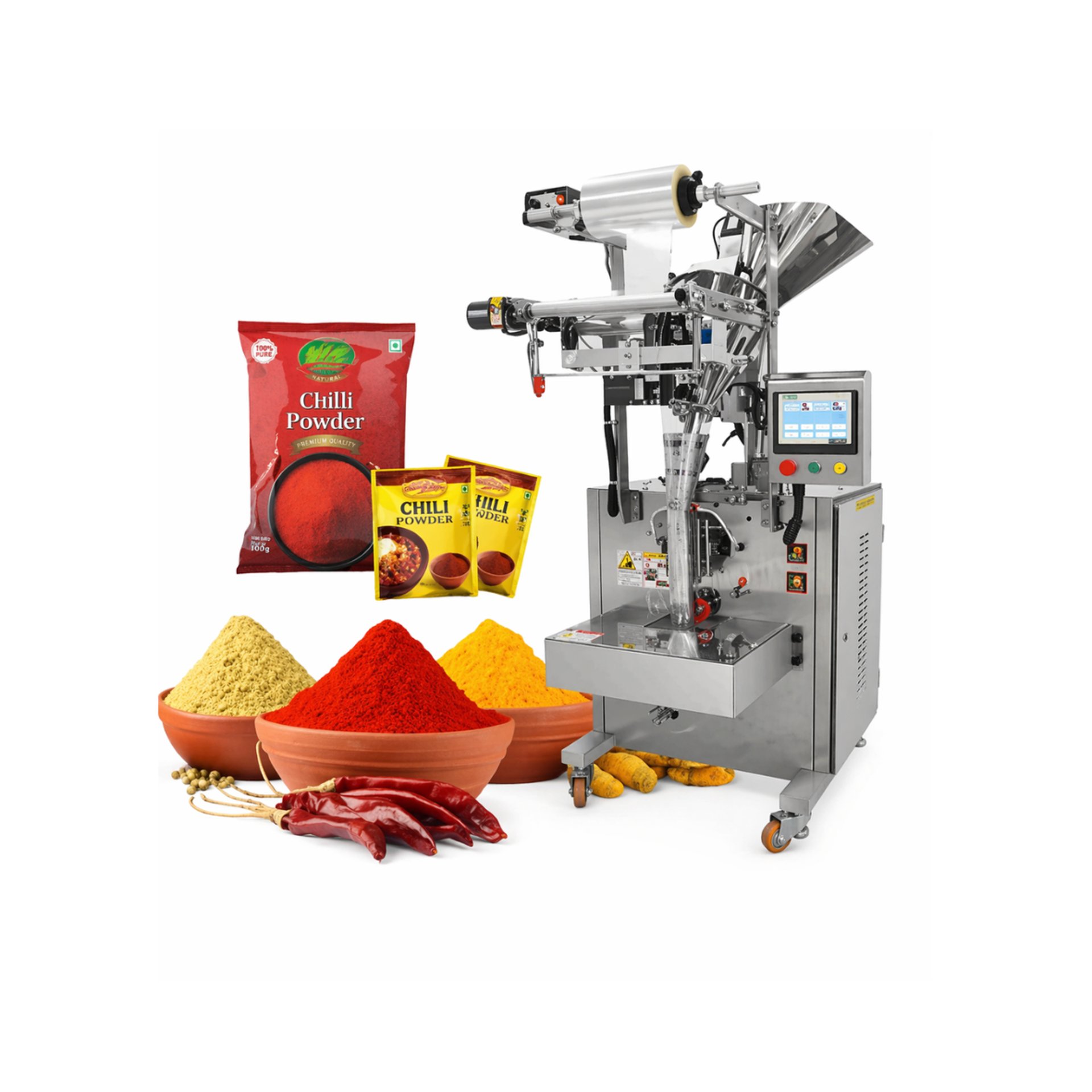

Small Automatic Pneumatic Packing Machine with Servo Auger Filler

The Small Automatic Pneumatic Packing Machine with Servo Auger Filler is specifically engineered for non-free-flow and sticky powder products. Equipped with a servo auger filling system, this machine ensures precise and controlled dispensing of powders that are difficult to handle with conventional filling systems.

Its compact design and pneumatic operation make it ideal for small to medium-scale production, delivering consistent performance, accuracy, and ease of operation.

Key Features

• Servo auger filling system for accurate powder dosing

• Ideal for non-free-flow and sticky powder materials

• Pneumatic operation for smooth and reliable functioning

• Automatic pouch forming, filling, and sealing

• Compact and space-saving design

• User-friendly PLC control system

• Hygienic SS 304 contact parts

Applications

• Spices Powder (Chilli, Turmeric, Masala)

• Wheat Flour & Atta

• Coffee Powder

• Henna Powder

• Pesticide Powder

Technical Specifications

• Filling System - Servo Auger Filling

• Filling Accuracy - ±1% to ±2% (depends on product nature)

• Sealing Type - Center Seal / 3 Side Seal

• Filling Range - 10 gm to 200 gm

• Packing Material - Non-free-flow powder

• Pouch Size - Width: 32 mm to 150 mm / Length: 52 mm to 200 mm

• Machine Dimensions - 2100 mm × 900 mm × 950 mm (H × W × L)

• Power Requirement - 3 kW

• Power Supply - 220V AC Single Phase / 415V Three Phase

• PLC - Delta / Fuji

• Contact Parts - SS 304

• Wooden Case Size - 2650 mm × 1000 mm × 1000 mm (H × W × L)

• Machine Weight - Approx. 350 kg

• Optional Features - Batch Coding Device, Screw Conveyor
