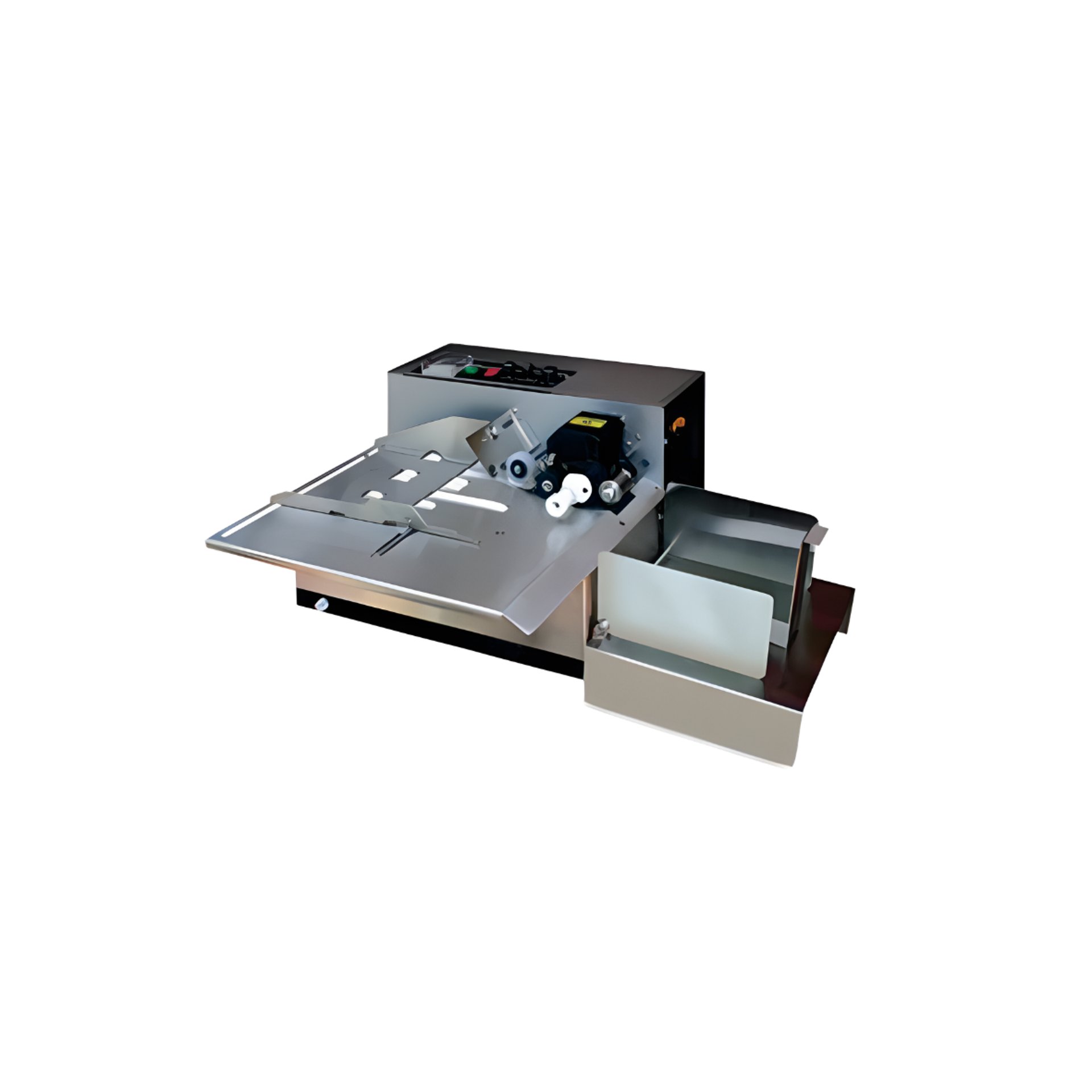

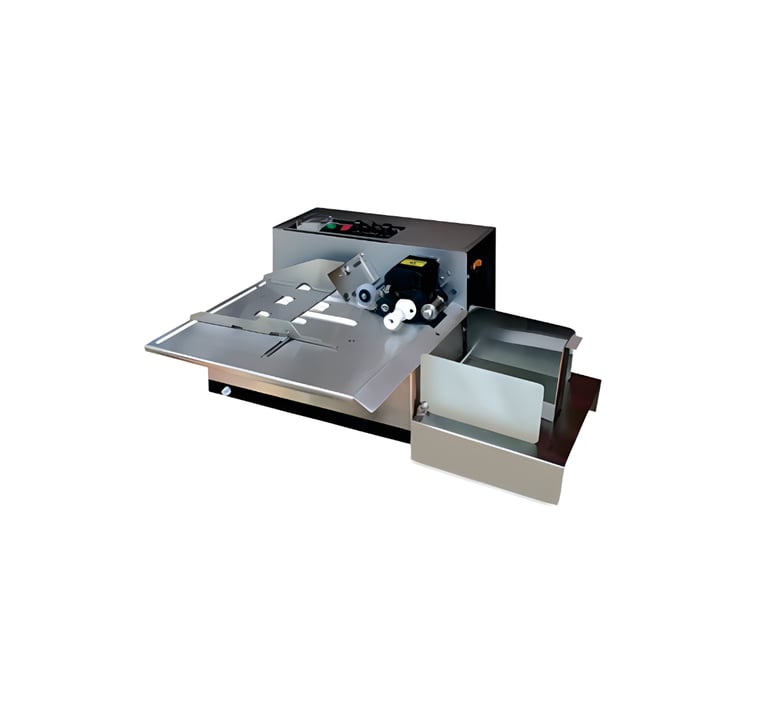

Solid / Hot Ink Coder (Automatic High-Speed Coder)

The Solid / Hot Ink Coder is a high-speed automatic printing solution designed for clear, durable batch coding on packaging materials. It delivers sharp, smudge-free prints for batch numbers, manufacturing/expiry dates, and product codes.

Using solid ink roller technology, this system ensures fast drying, solvent-free operation, and excellent adhesion—making it ideal for continuous production environments.

Key Features

• High-Speed Printing: Capable of up to 300 prints per minute

• Clear & Durable Coding: Sharp, long-lasting impressions

• Instant Dry Technology: Smudge-free and ready for immediate handling

• Multi-Line Printing Capability: Supports detailed product information

• Solid Ink Technology: No liquid ink required, clean operation

• Wide Application Range: Compatible with various packaging materials

• Low Maintenance: Reliable and cost-effective performance

Applications

• Food and FMCG packaging

• Pharmaceutical products

• Cosmetic and personal care items

• Flexible packaging films and pouches

• Labels and paper-based packaging

Technical Specifications

Model: PIC-980

• Machine Dimensions: 440 × 345 × 300 mm

• Power Consumption: 180 W

• Power Supply: AC 220V / 50 Hz (Optional: 110V / 60 Hz)

• Printing Speed: Up to 300 prints/min

• Object Size Range:

  • Length: 50 – 500 mm

  • Width: 30 – 190 mm

• Maximum Printing Lines:

  • T-Type (10.5PT): Up to 11 lines (max 10 characters per line)

  • R-Type (10.5PT): Up to 8 lines (max 8 characters per line)

• Printing Media: Solid hot ink roller (various colors available)

• Ink Requirement: No liquid ink required
