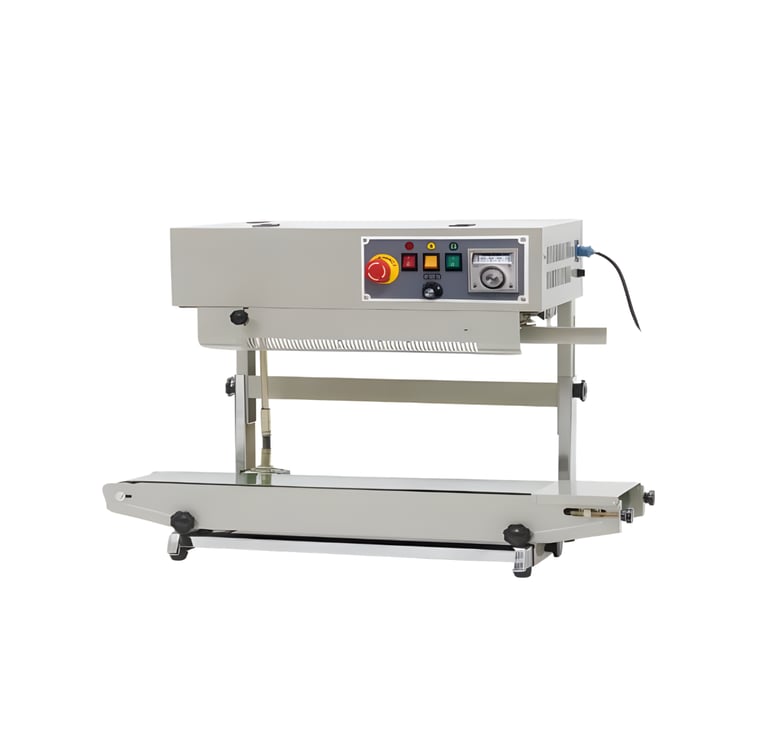

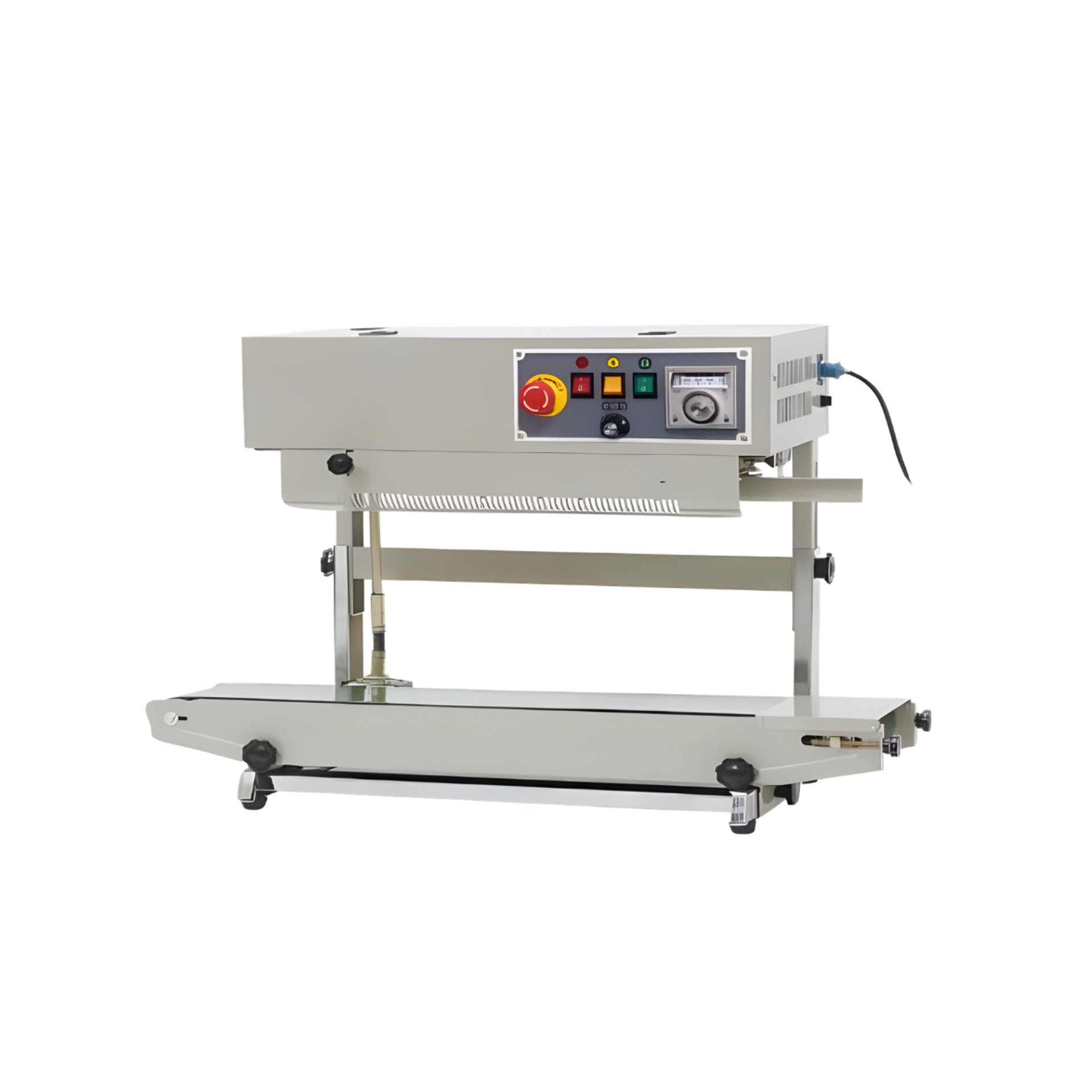

Vertical Continuous Band Sealer Machine (BPACS 900V)

The Vertical Continuous Band Sealer Machine (BPACS 900V) is designed for efficient sealing of filled pouches in vertical orientation, making it ideal for powder, granule, and liquid-packed bags.

This machine is equipped with a conveyor system and adjustable sealing head, allowing smooth operation and consistent sealing even for heavier or bulk-filled pouches. It is widely used in food, pharmaceutical, and chemical industries for continuous packaging processes.

Key Features

• Vertical sealing design for heavy or liquid-filled pouches

• Continuous band sealing for high productivity

• Adjustable sealing height and conveyor position

• Temperature control for different packaging materials

• Durable and stable structure for industrial use

• Easy-to-operate control panel

• Consistent and strong sealing performance

Applications

• Food Products (Grains, Spices, Snacks)

• Powder & Granule Packaging

• Liquid & Semi-Liquid Pouches

• Pharmaceutical Products

• Chemical & Industrial Packaging

Technical Specifications

Model - BPACS 900V

• Voltage - 220V / 50 Hz

• Power - 650 W

• Sealing Speed - 0 to 12 m/min (adjustable up to ~16 m/min)

• Sealing Width - 8 mm to 10 mm

• Temperature Range - 0°C to 300°C

• Distance (Seal Center to Conveyor) - 15 mm to 270 mm

• Conveyor Size - 840 mm × 153 mm

• Film Thickness - Up to 0.08 mm

• Single Conveyor Load - 1 kg

• Overall Conveyor Load - 3 kg

• Machine Dimensions - 840 mm × 380 mm × 550 mm (L × W × H)

• Net Weight - Approx. 37 kg
