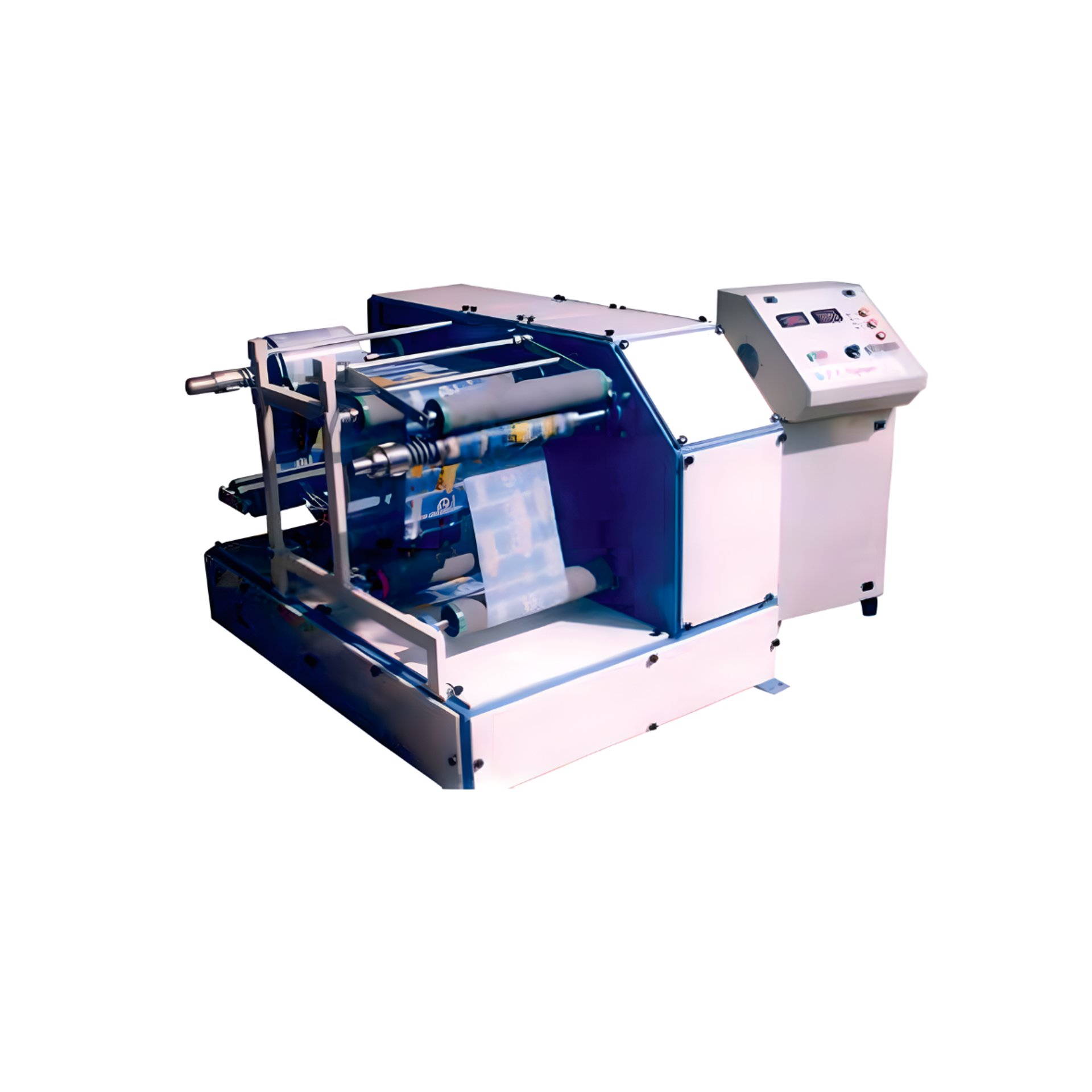

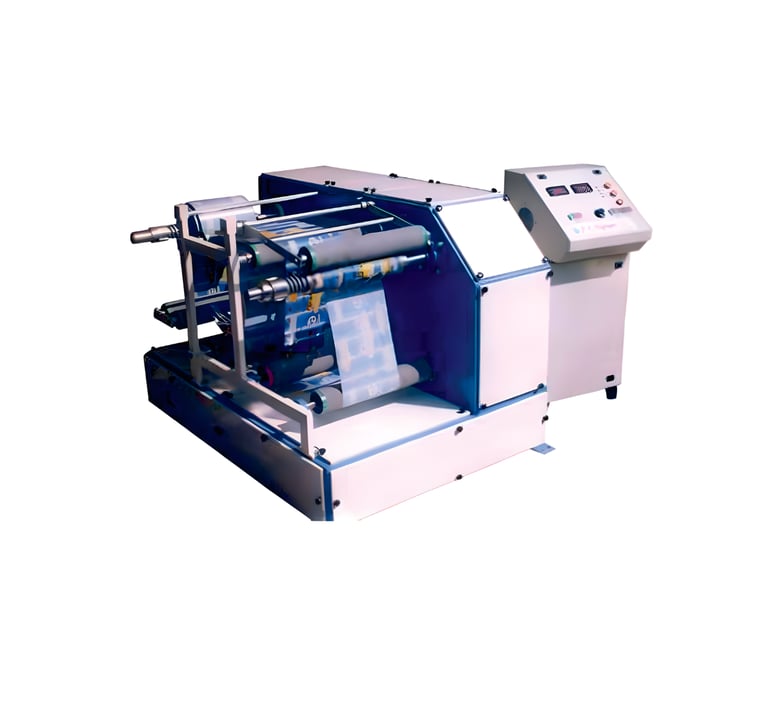

Winder Rewinder Machine

Our Winder Rewinder Machine is engineered to deliver high-speed, precision winding and slitting for a wide range of flexible packaging materials. Designed for consistent tension control and accurate edge alignment, this machine ensures superior roll quality with minimal material wastage.

It efficiently converts large parent rolls into smaller, uniform finished rolls—making it an essential solution for modern converting and packaging operations.

Key Features

• High-Speed Operation: Capable of running at speeds up to 300 meters per minute

• Precision Slitting: Ensures clean, accurate cuts with minimal edge defects

• Advanced Tension Control: Maintains uniform tension for consistent roll quality

• Versatile Material Handling: Suitable for films, laminates, paper, and foil

• Customizable Configurations: Available in multiple web widths and setups

• Robust Build Quality: Designed for continuous industrial performance

• Reduced Material Waste: Optimized system for maximum efficiency

Applications

• Flexible packaging film converting

• Label and laminate processing

• Paper and foil roll slitting

• Printing and packaging industries

• Industrial roll-to-roll operations

Technical Specifications

• Maximum Web Width: 600 mm to 1300 mm (custom sizes available)

• Maximum Unwind Diameter: Up to 1000 mm

• Maximum Rewind Diameter: Up to 600 mm

• Machine Speed: 150 – 300 m/min (depending on material type)

• Tension Control System:

  • Magnetic Powder Brake & Clutch

  • Optional PLC-based AC Drive system

• Slitting System: Rotary cutters / Razor blade slitting with adjustable settings
